User’s Manual
238-741-00K
May 2019
Programmable Smart HART Temperature Transmitter
THZ
3
/ TDZ
3
SECTION 5

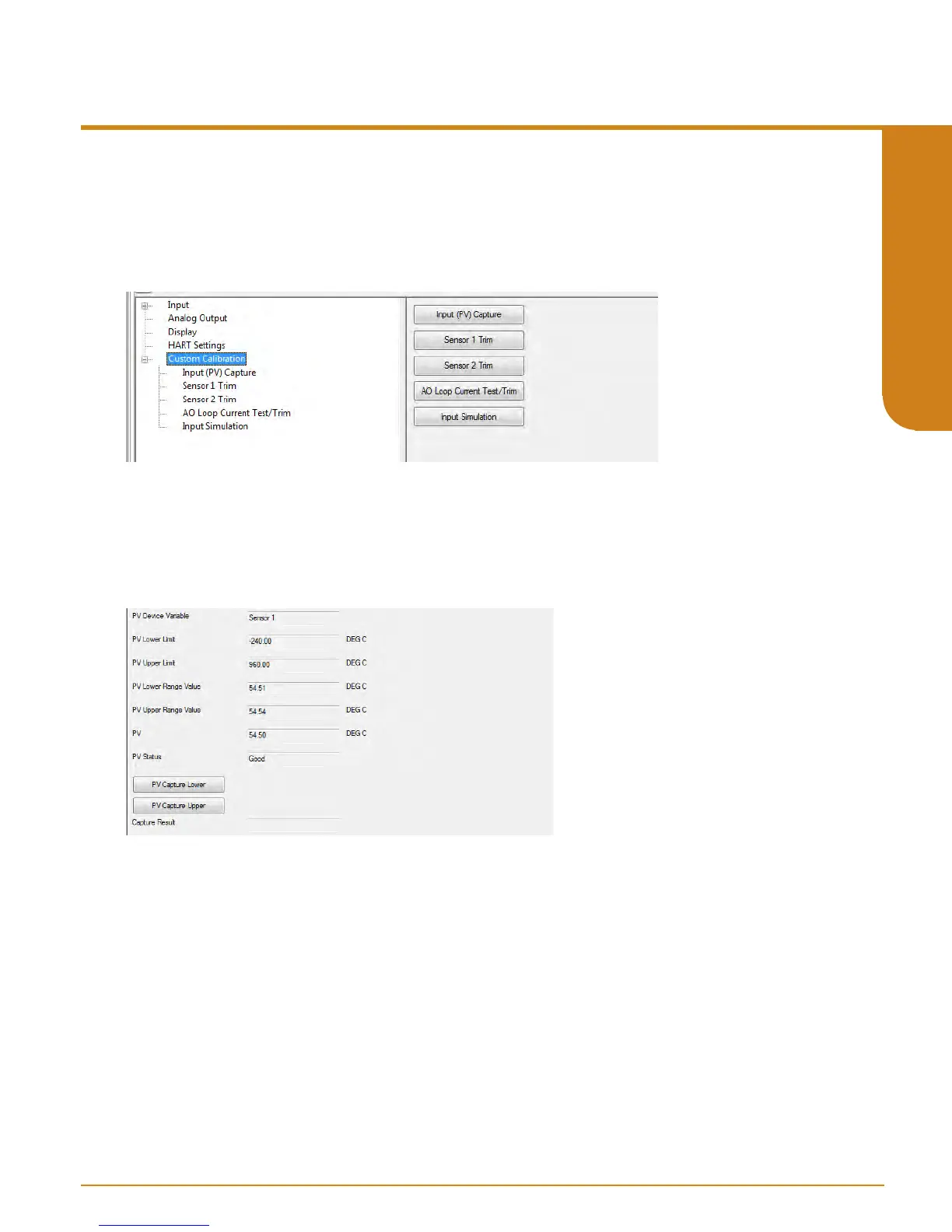

Figure 5.31. THZ
3
/ TDZ
3
Custom Calibration Menu
Figure 5.32. THZ
3
/ TDZ
3
Custom Calibration Menu - Input (PV) Capture
Custom Calibration
The Custom Calibration menu displays the following Sub menus options Input (PV) Capture,
Sensor 1 Trim, Sensor 2 Trim, AO Loop Current Test/Trim, and Input Simulation. See
Figure 5.31.
Input (PV) Capture
Input Capture is used to capture the actual device input zero and full scale. Use the “PV Capture
Lower” or “PV Capture Upper” button to achieve this. Menu displays values for the following PV
Device Variable, PV Lower Limit, PV Upper Limit, PV Lower Range Value, PV Upper Range
Value, PV, and PV Status. See Figure 5.32
