Programmable Smart HART Temperature Transmitter
THZ
3
/ TDZ
3
SECTION 5

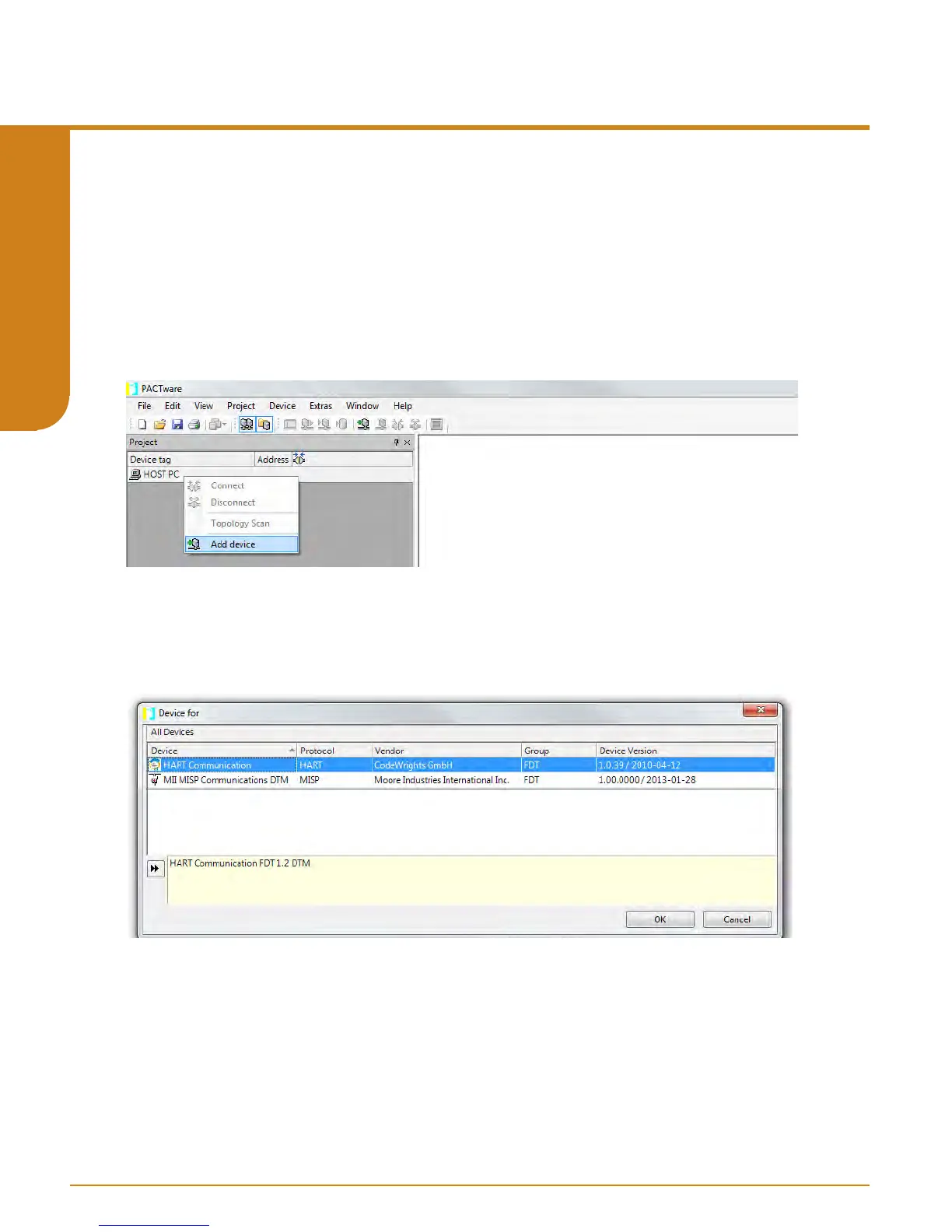

Figure 5.14. HART configuration adding a device.
Connecting to THZ3/TDZ3 using HART
To congure the HART Communications DTM you will need to add necessary DTMs within the
FDT frame application (PACTware) software to start your conguration. Follow steps below to
achieve this.
1. Connect TDZ
3
/THZ
3
unit per Figures 5.1- 5.3.
2. Launch FDT frame application (PACTware) software.
3. Right Click on the Device Tag named “HOST PC” and select “Add device”
Figure 5.15. Adding HART Communication DTM.
