Programmable Smart HART Temperature Transmitter
THZ
3
/ TDZ
3
SECTION 5

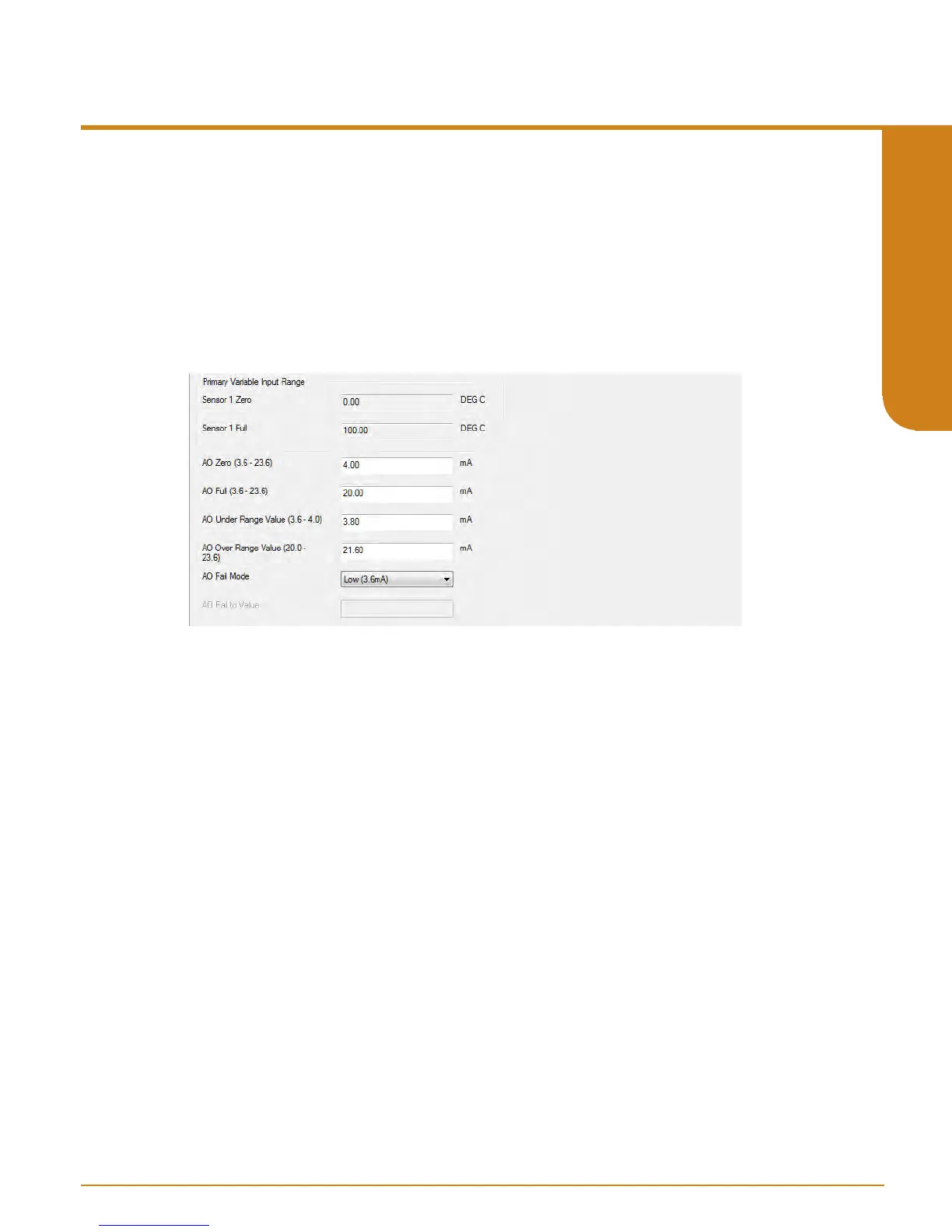

Figure 5.28. THZ
3
/ TDZ
3
Parameters Analog Output
Analog Output
The Analog Output menu will allow you to view and set Fail Mode type and Fail Mode
value you can see the following menu items: AO Zero, AO Full, AO URV, AO ORV, AO Fail
Mode, and AO Fail to Value. See Figure 5.28 below for further clarication.
Use this portion of the menu to set the AO Zero, AO Full, AO URV (under range value), AO
ORV (over range value), AO Fail MODE and AO Fail Mode values, to trim the output and to
reset the trimmed output.
