Morbark 20 - Engine Information Page

Display Module Display Pages
Operator’s Manual, Morbark Integrated Control System—Model 20 Chipper
12

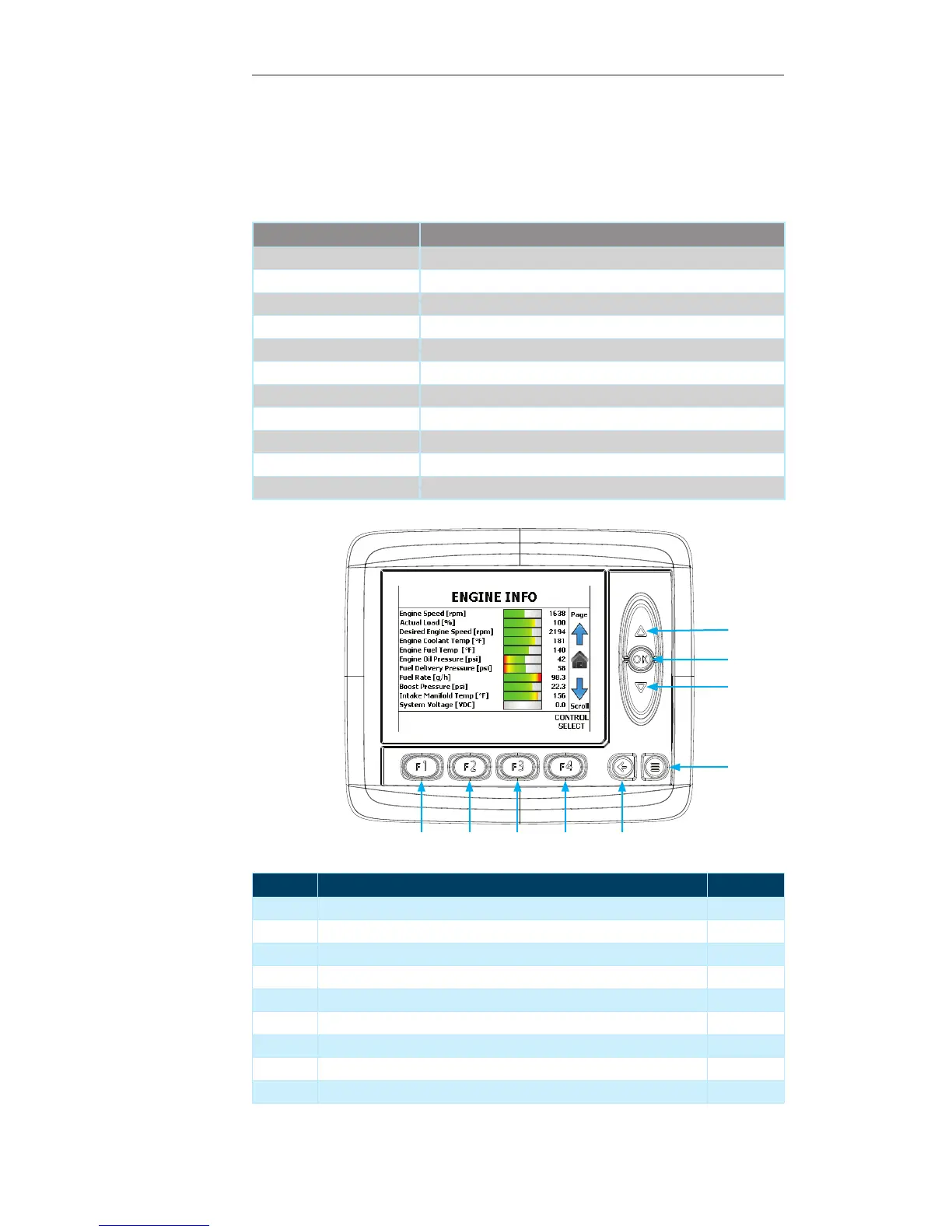

Engine Information Page
This page displays information related to the Machine’s Engine. This information is
broadcast by the ECM.
Contained within this page:
Parameter Unit of Measure
Engine speed RPM
Actual load Percent
Desired Engine speed RPM
Engine coolant temp ° Fahrenheit
Engine fuel temp ° Fahrenheit
Engine oil pressure PSI
Fuel delivery pressure PSI
Fuel rate Gallons per Hour
Boost pressure PSI
Intake manifold temp ° Fahrenheit
System voltage VDC
Display Module Navigation
Number Description Page
1 Up Arrow — Press to navigate to the “Feed Control” Page 13
2 OK Button — Press to return to the “Main Page” 11
3 Down Arrow — Press to return to the “Main Page” 11
4 Menu Button — Press to navigate to the “System Menu” 21
5 Escape Button — Press to return to the “Main Page” 11
6 F4 Button — Press to navigate to the “Control Select” Page 18
7 F3 Button — Not used on the current screen --
8 F2 Button — Not used on the current screen --
9 F1 Button — Not used on the current screen --
1
3
2
4
56789
