Moretti Design AQUA - Control Unit Overview

19

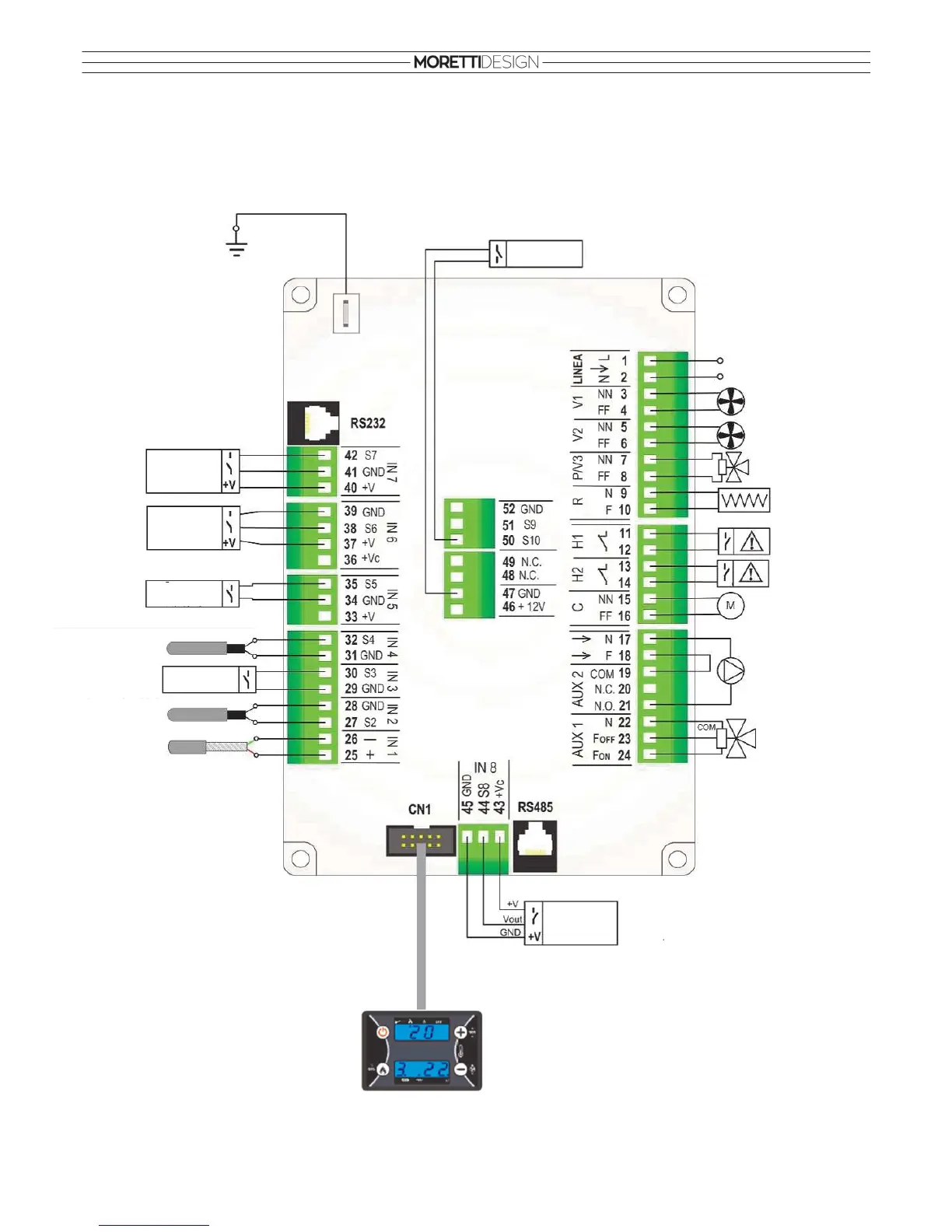

CONTROL UNIT
Flowmeter Sensor
Puffer Probe/
Flow Switch
Exhaust Probe
Boiler Probe
Pressure
Sensor
Micro Switch
Encoder
LINE
(230V 50Hz)
Exhaust Fan
Heating Fan
Burner Cleaner Motor
ONLY FOR PLUS CLEAN MODELS
Ignition Resistance
Cleaner Motor
CLEAN AND PLUS CLEAN MODELS
Safety Thermostat
Resetting Thermostat
Pressure Switch
Auger
Pump
Electrovalve
Emergency Control Panel
(Pellet Door and Front Door)
Room Thermostat
(Optional)
Micro Switch (Burner Cleaner)
ONLY FOR PLUS CLEAN MODELS
