5. Clearing a Paper Jam
If the jam still remains:
Switch off the Power
Set the fold adjust levers (A) on both sides to “8” to separate the fold rollers.
Lift up the guide (B) from below the upper fold roller (C).
Use the key (D) from the tool box and crank the upper fold roller to remove jammed
sheets.
If a Trimmer is installed, removing the Trim Bin gives you access to the fold stop area
from the outfeed side of the Booklet Maker.
Put the key back in the tool box.
Replace the Trim Bin, if the Trim Bin was removed.
Switch on the power.
Inside the Booklet Maker, continues

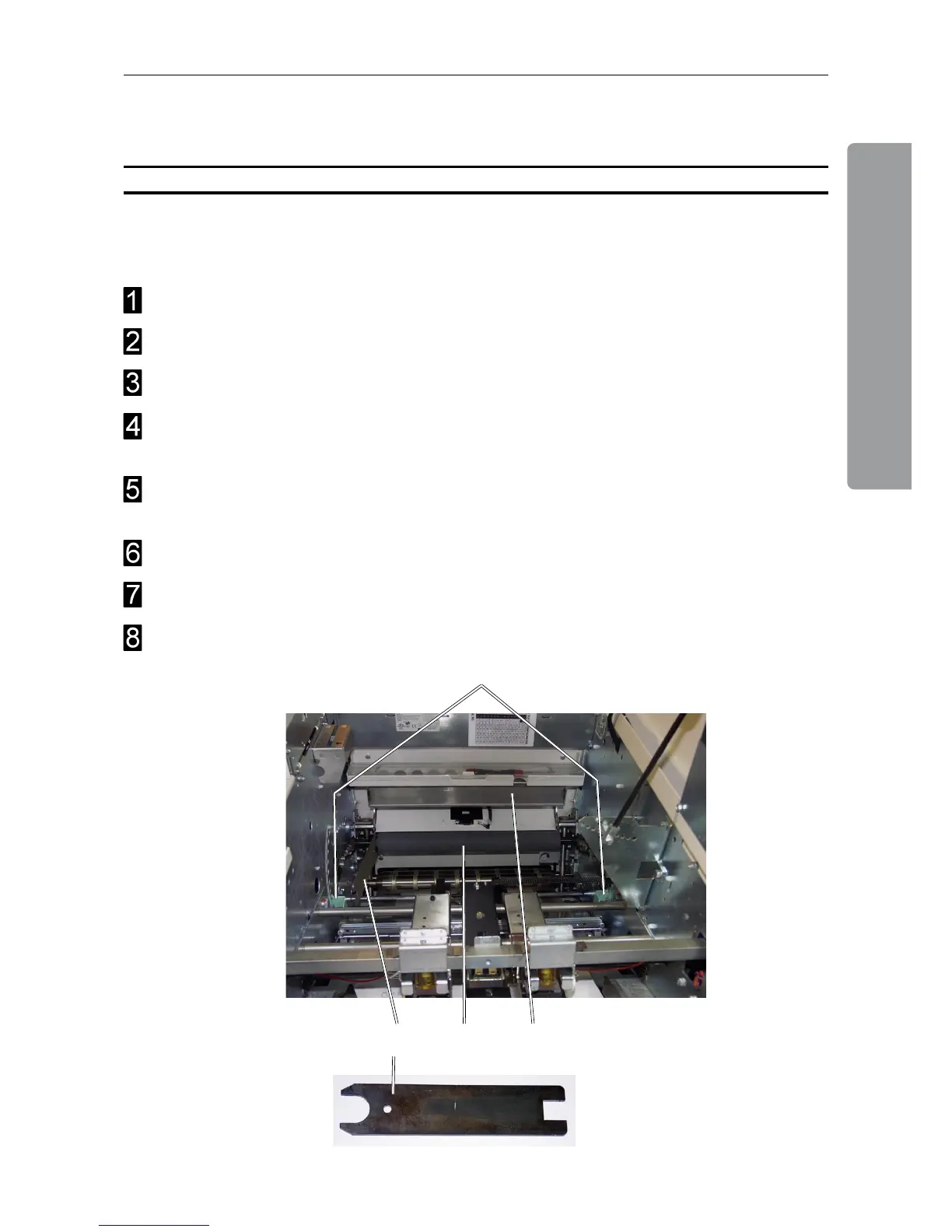

CD B
A
Booklet Maker,
top view
