Cable
An Ethernet RJ45 socket, connecting to a standard Ethernet cable, is
provided on:
• #62202 SDL3 loom
• #61131 Ethernet cable, unterminated, 2 metre
• #61132 Ethernet to Autosport pins cable, 1.8 metre

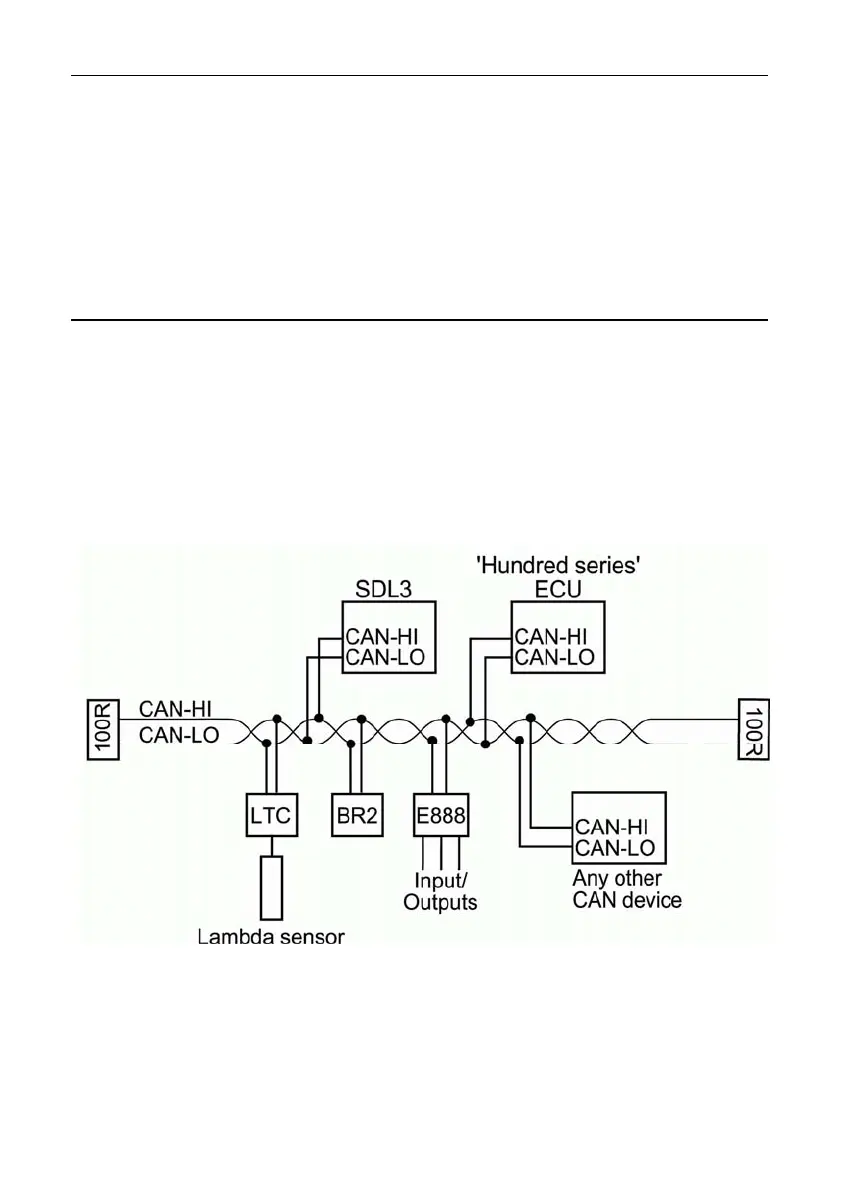

CAN Bus Wiring Requirements
• The CAN bus should consist of a twisted pair trunk with 100R (0.25 watt)
terminating resistors at each end.
o If the CAN bus is less than 2 metres (7 ft) long, a single termination
resistor may be used.
• The preferred cable for the trunk is 100R data cable.
• The maximum length of the bus is 16 metres (50 ft)
• CAN devices (such as MoTeC Dash Loggers, ECUs etc.) may be
connected to the trunk with up to 500 mm (20 in) of twisted wire.
