MoTeC Configuration 27
Display

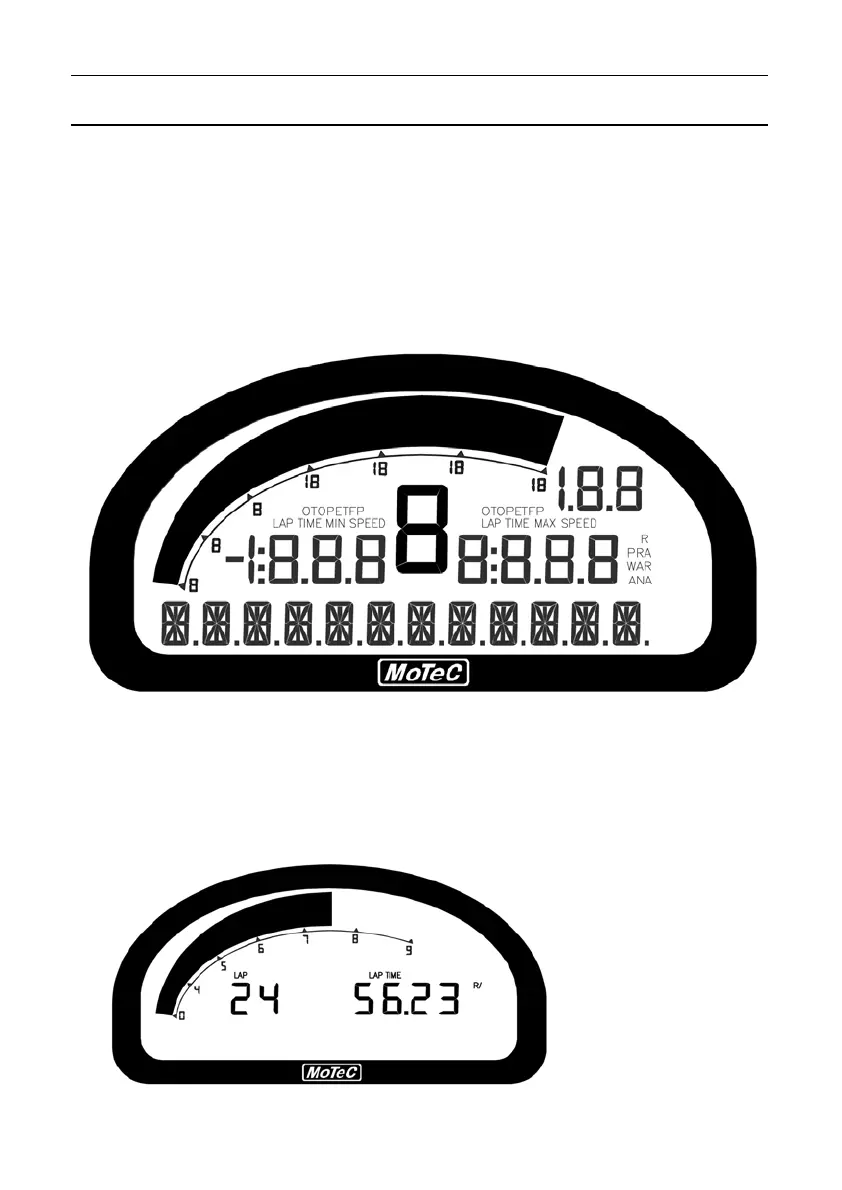

The Dash Logger display is a high contrast, high temperature, custom made
LCD display.
The display contains a Bar Graph, three Numeric Displays, a Centre Numeric
Display and a Bottom Alpha / Numeric Display.
To configure the display
• On the Functions menu, click Display
• Select the relevant tabs to set up the display
Display Modes
The display has three main modes of operation; Race, Practice and Warm-up.
The mode is changed by pressing a button that is wired to the system.
Race Mode
