MoTeC Appendices 55
M48, M4 (pre M4e) and M8
The M48, M8 and M4 (pre M4e) require the use of a CIM module or a PCI
Cable to convert the logic level signals used by these ECUs into RS232
levels.

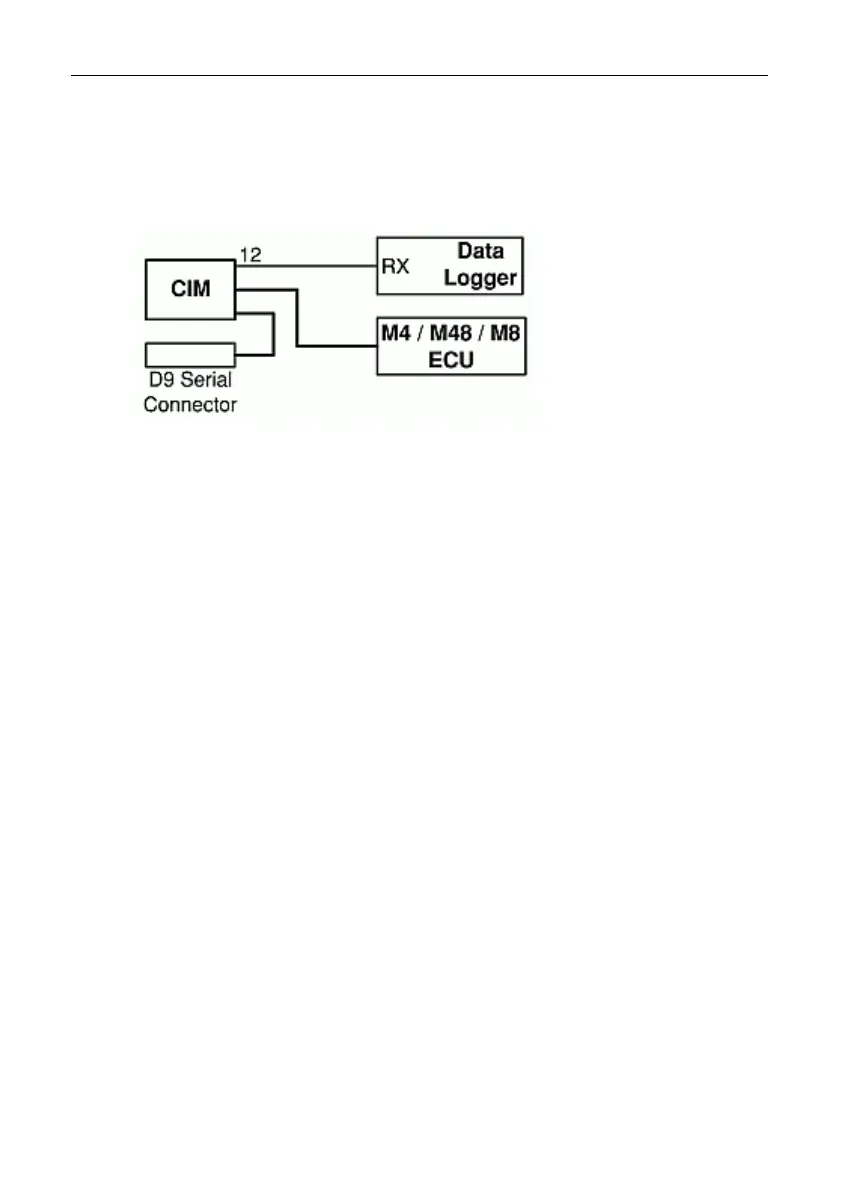

Using a CIM Module
Contact MoTeC for the CIM module drawing for full wiring details.
Note:
• The data stream to the Data Logger will be interrupted while a PC is
connected.
