Motorline MC2 User Manual

3A 3B
PTPT
02. THE CONTROL BOARD 02. THE CONTROL BOARD
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS
The MC2 is a central electronic single phase with incorporated radio, for automation of
swing gates.
• Power supply 110/230V AC 50-60Hz
• Lightbulb’s output 110/230V AC 500W máx.
• Motor’s output 110/230V AC 50/60 Hz 500W máx.
• Auxiliary accessories output
24V AC 15W máx.
• Safety and PB impulses 24V CC
• Working temperature -10˚C to +55˚C
• Protection IP56
• Incorporated Radio Receiver 433,92 Mhz
• OP Transmitters 12-18 bits or Rolling Code
• Maximum memory capacity 150 (CODE or CODE PED)
• CONNECTOR’S DESCRIPTION

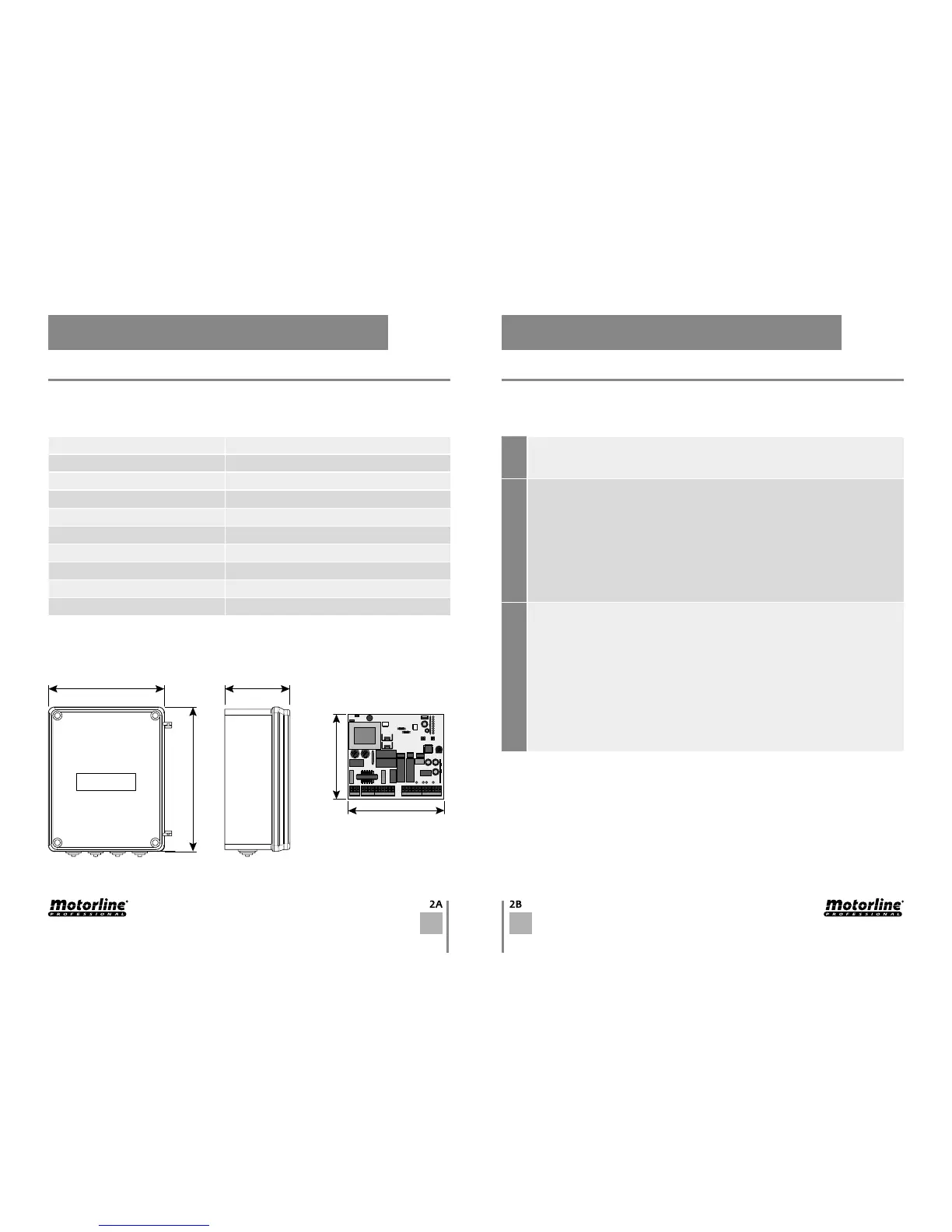

• DIMENSIONS OF THE BOX AND CONTROL BOARD
01 • Earth connection
02 • Earth connection
03 • Earth connection
01 • AC 110/230V Line Input (PHASE)
02 • AC 110/230V Line Input (NEUTRAL)
03 • Lightbulb / Courtesy light’s output (not blink) AC110/230V (NEUTRAL)
04 • Lightbulb / Courtesy light’s output (not blink) AC110/230V (PHASE)
05 • Motor’s Output 1 opening
06 • Motor’s Output 1 common
07 • Motor’s Output 1 closing
08 • Motor’s Output 2 opening
09 • Motor’s Output 2 common
10 • Motor’s Output 2 closing
01 • Output for power photocells 24V AC
02 • Output for power photocells (earth)
03 • Output for electric lock 12V DC 15W (+12V)
04 • Output for electric lock 12V DC 15W (earth)
05 • PUL input (button to order opening / closing) (NA)
06 • Earth common input
07 • PUL PED input (button to order pedestrian entry) (NA)
08 • DS1 Input safety device 1 (NC)
09 • Input common GND
10 • DS2 Input safety device 2 (NC)
11 • Antenna mass input
12 • Antenna hot pole input
CN2CN3 CN1
205mm 115mm
140mm
252mm
125mm
