2.6.2 Wall Mount Procedure

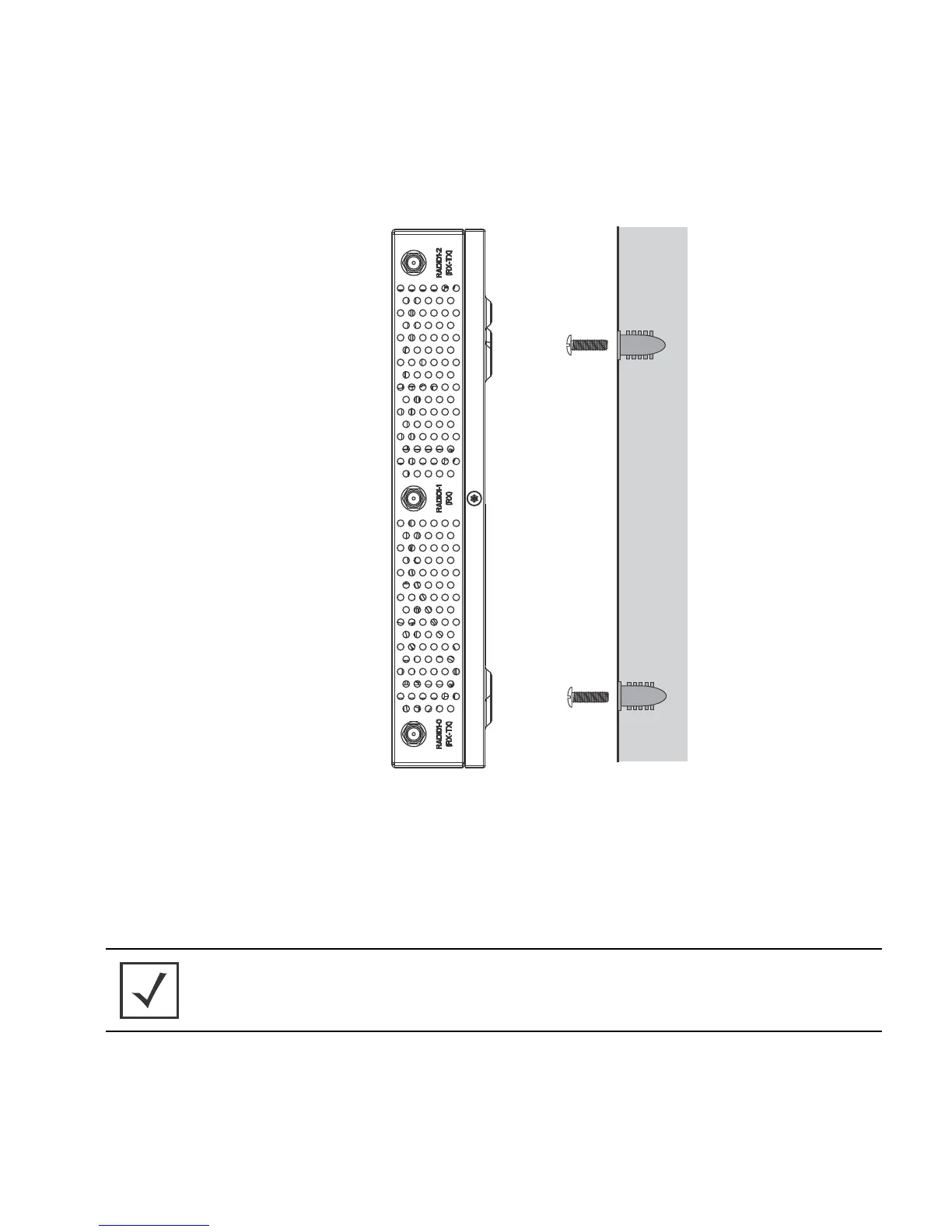

1. Orient the case on the wall by its width or length.
2. Using the arrows on one edge of the case as guides, move the edge to the midline of the
mounting area and mark points on the midline for the screws.
3. At each point, drill a hole in the wall, insert an anchor, screw into the anchor the wall mounting
screw and stop when there is 1mm between the screw head and the wall.
4. If required, loop a safety wire, between 1.5mm (.06in.) and 2.5mm (.10in.) in diameter, around
the tie post and secure the loop.
5. If required, install and attach a security cable to the unit’s lock port.
NOTE When pre-drilling a hole the recommended hole size is 2.8mm (0.11in.) if
the screws are going directly into the wall and 6mm (0.23in.) if the
provided wall anchors are being used.
