Troubleshooting Waveforms: RX SSI 6-11
6.4 RX SSI
6.4.1 CLK.

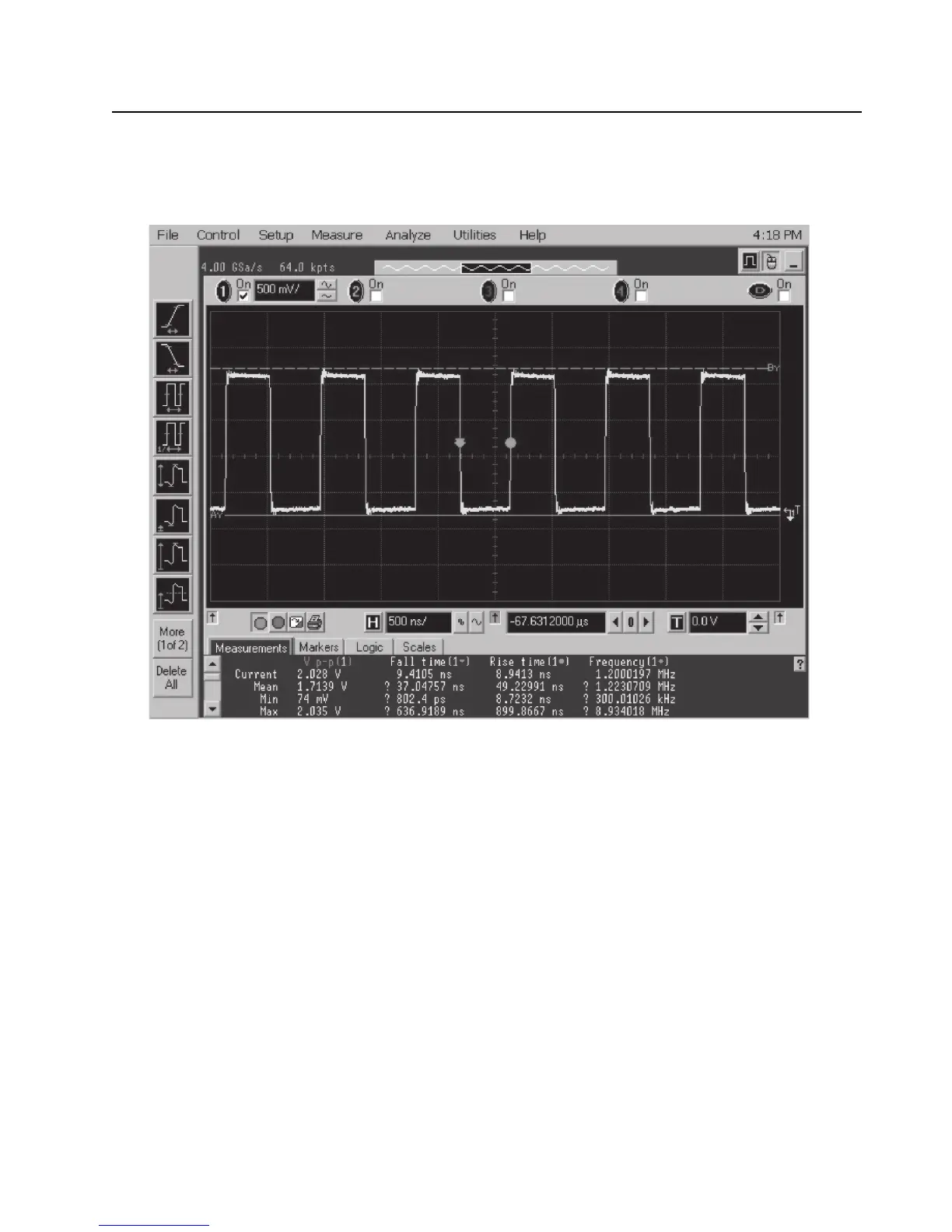

Trace 1: Trace recorded at R2806.
Figure 6-10. RX SSI – CLK. Waveform
