Troubleshooting Waveforms: Bluetooth Troubleshooting Waveforms 6-43
6.15.3 Bluetooth Startup: Timing Difference of TP5 to TP16 and Voltage Statistics

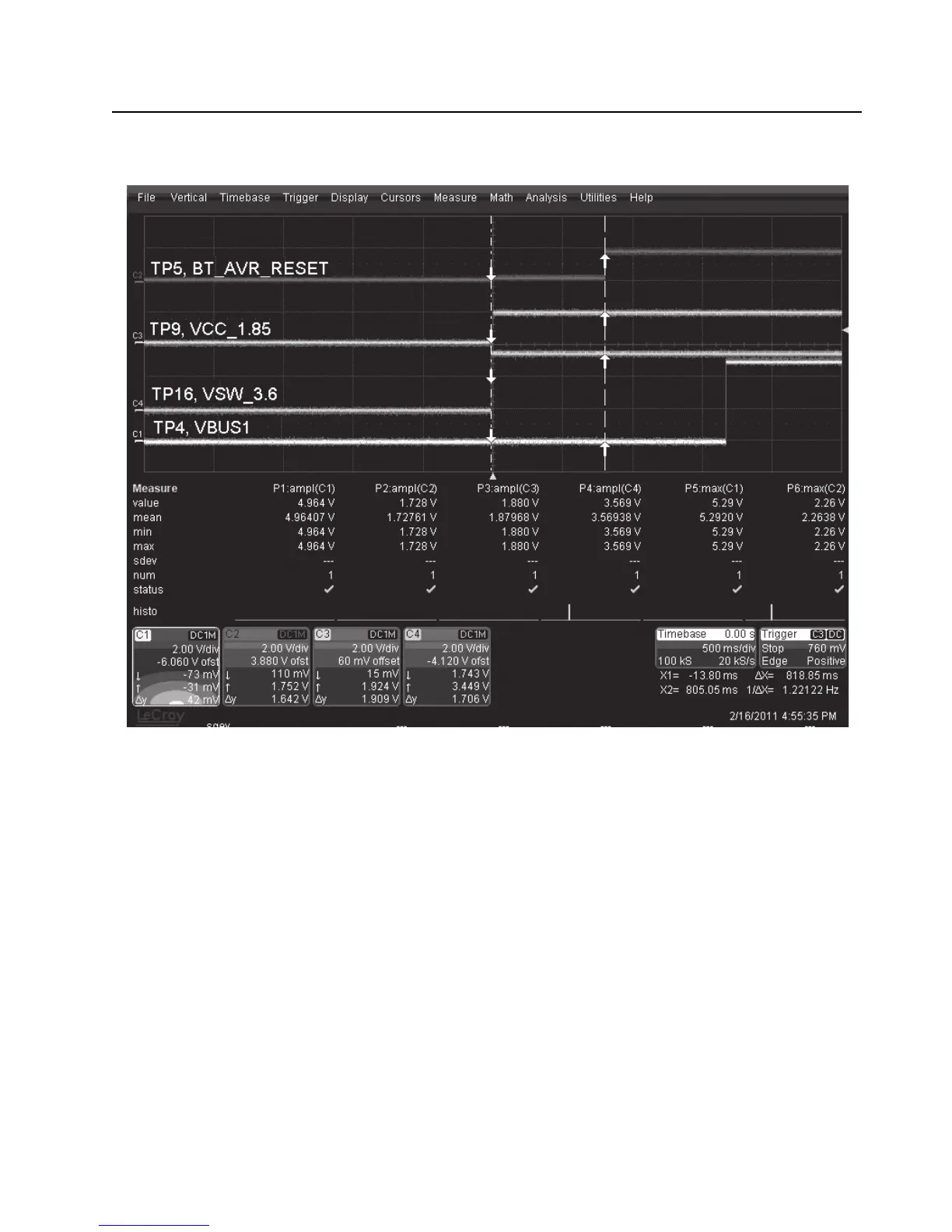

Figure 6-39. Startup – Timing Difference of TP5 to TP16 and Voltage Statistics
