Motorola APX 1000 - Figure 6-58. Keypad Board Waveforms - LF Coil When TX and RX

6-62 Troubleshooting Waveforms: Bluetooth Steady-State
6.16.5 Keypad Board Waveforms – LF Coil with TX and RX

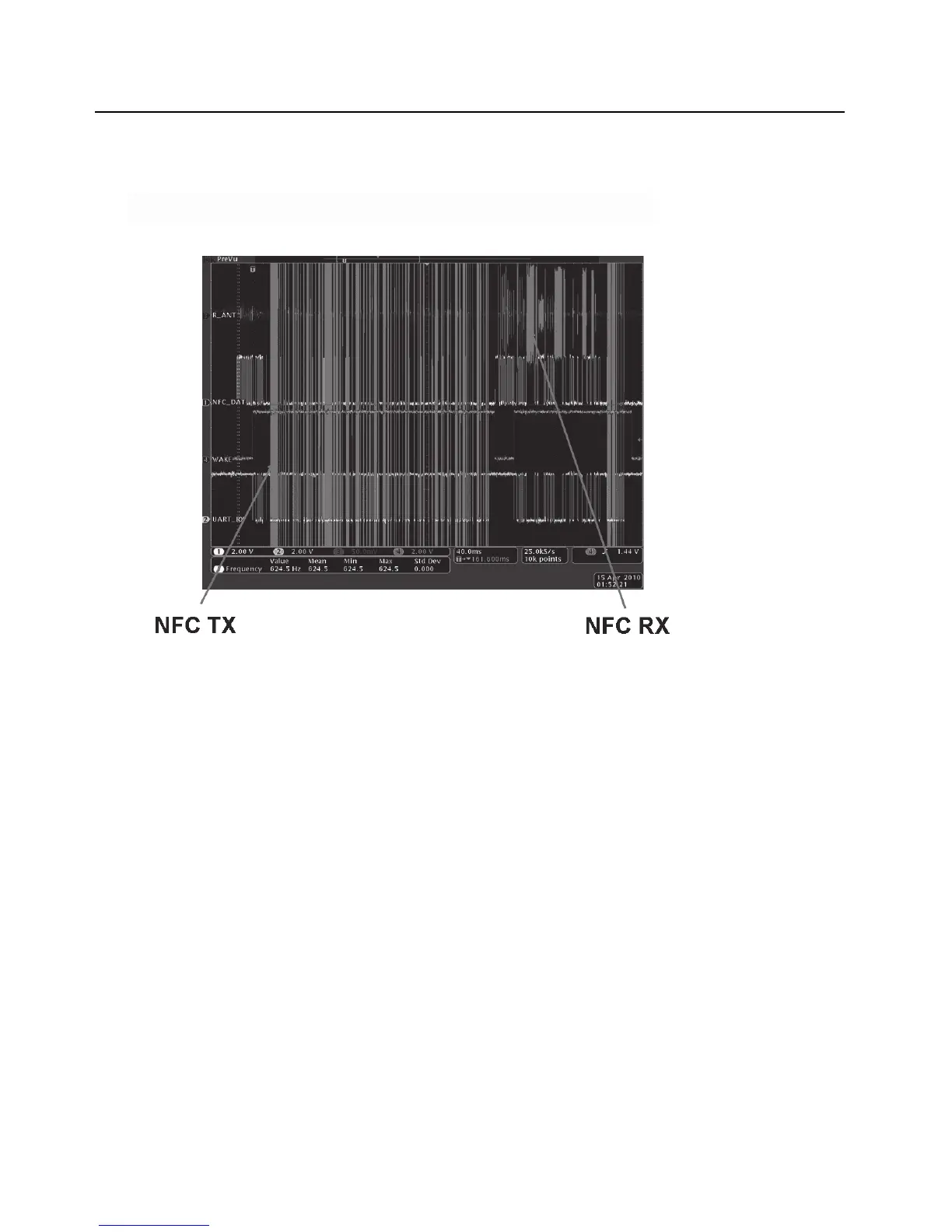

Figure 6-58. Keypad Board Waveforms – LF Coil when TX and RX
Data taken
from LF
inductor
contact at
C2454 or
C2457 while
pairing with
a headset
TX Voltage
can be
as high as 40V
OOK used
