6-20 Troubleshooting Waveforms: I2C BUS
6.7.2 SCL 5V

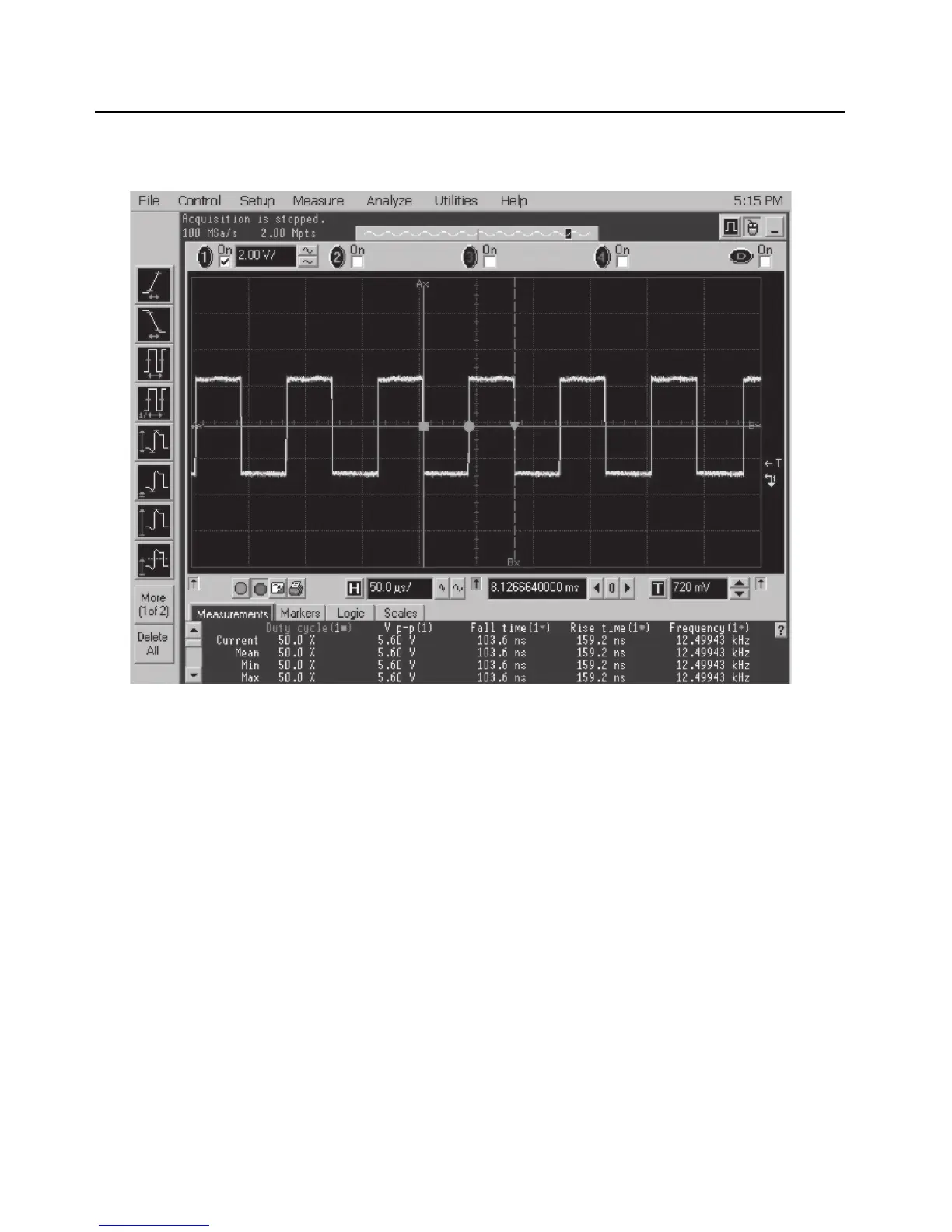

Trace 1: Trace recorded at R2204.
Figure 6-19. I2C Bus – SCA 5V Waveform
