6-30 Troubleshooting Waveforms: FLASH CONTROL
6.12.2 CS3

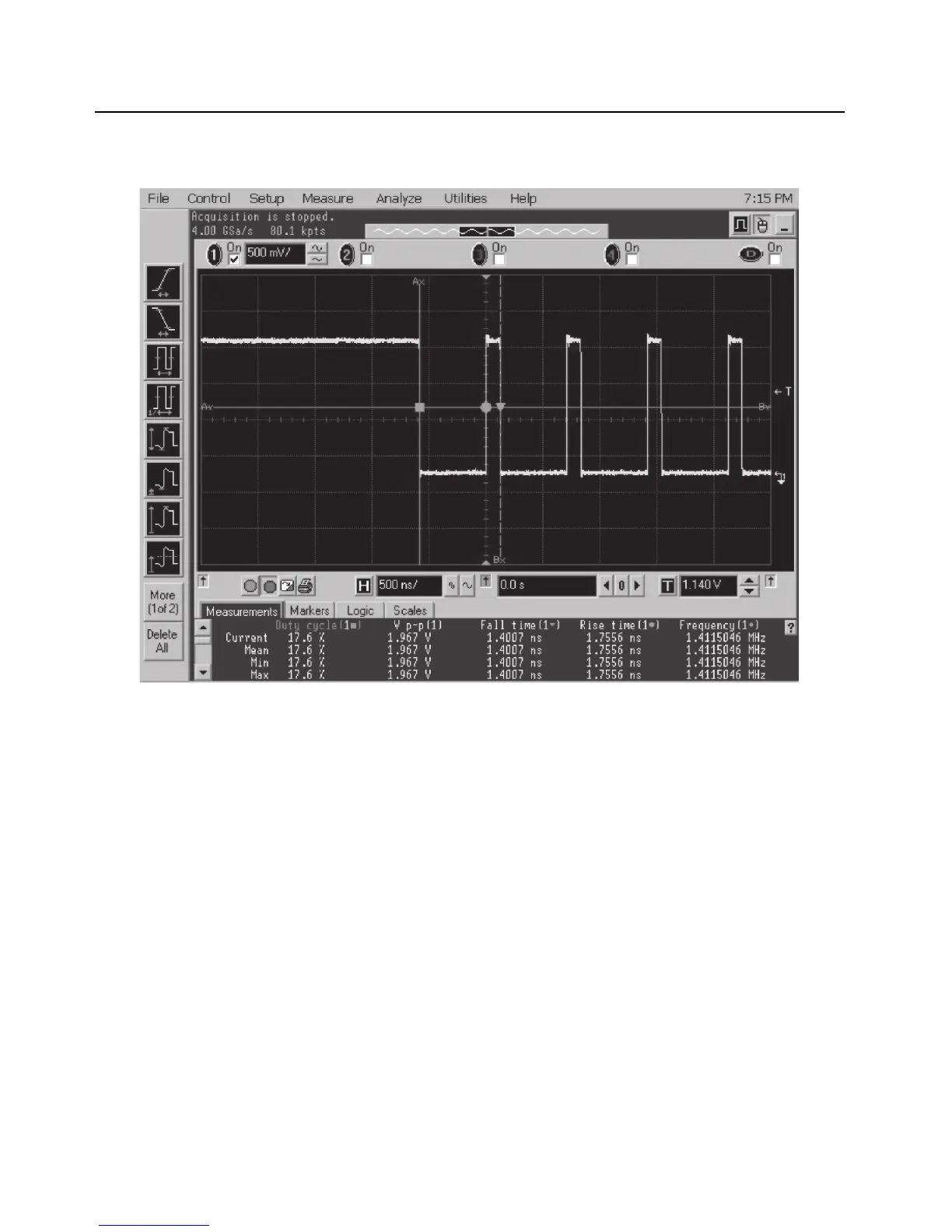

Trace 1: Trace recorded at R6311.
Figure 6-29. FLASH CONTROL – CS3 Waveform
