Theory of Operation: Controller 3-23
3.2.1.3 Controller Electrical Architecture

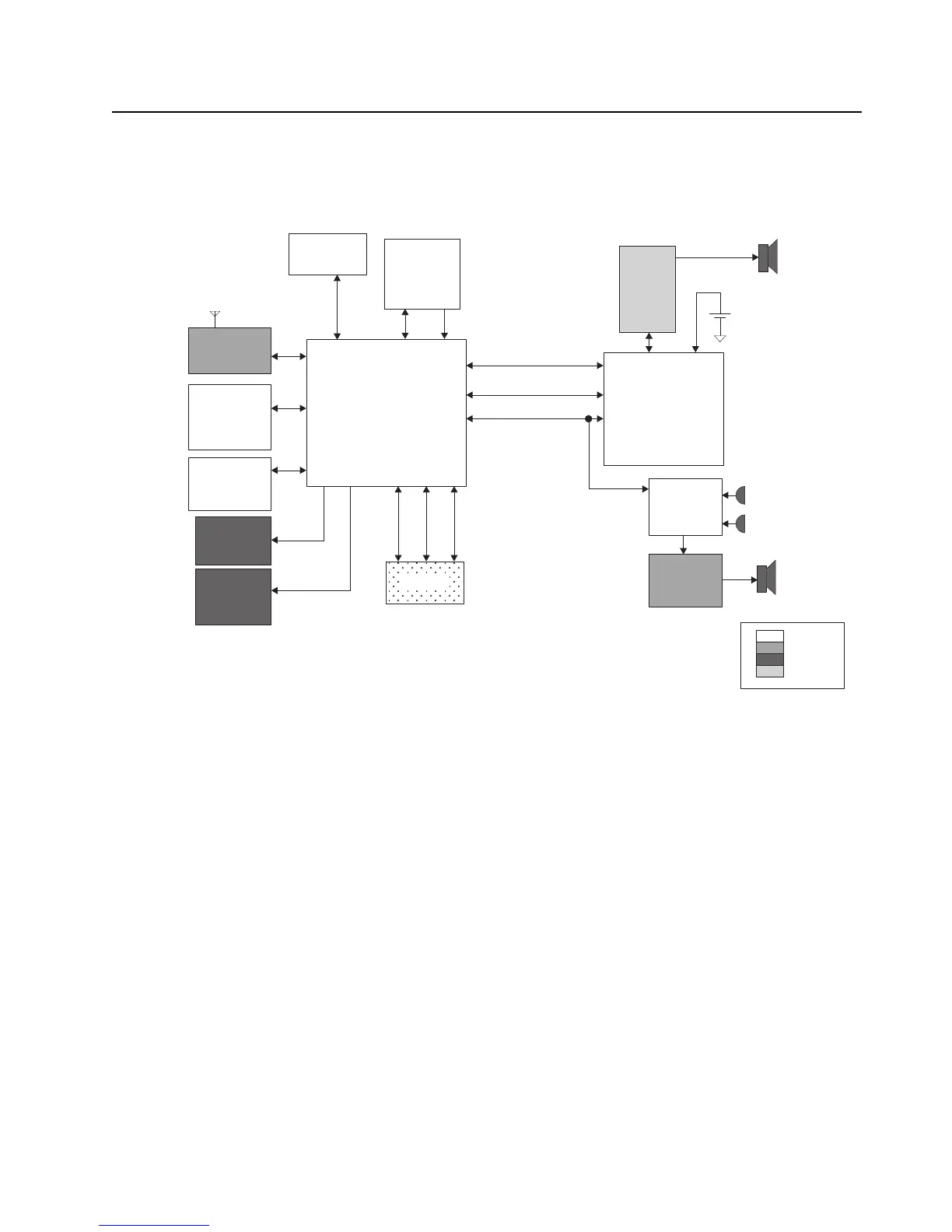

An overview of the Controller electrical architecture is shown in Figure 3-14 below. The major
components and electrical interfaces are shown.
Figure 3-14. Controller Electrical Overview
The functional blocks of the controller are:
DC Distribution
Clock Sources
Processor / Memory
•CPLD
Audio – Internal and External
MAKO
User Interfaces
GPS/ BT Chipset
(TINL5500)
FLASH
64MB
SDRAM
32MB
Keypad /
Switches
Front
Display
SoSSI
Keypad
EMIFF
EMIFS
UART 2
12C
Lighting
Controller
CPLD
EMIFS
32 kHz Clk
Side
Conn -
GCAI
Radio
Battery
Accessory
Audio
MAKO IC
SPI
Codec
Dual
Microphones
Main
Speaker
Main Board
Keypad
UI
GCAI
Class D
Audio PA
RF Section
GPIO SPI SSI
SPI
USB / UART
Audio SSI 1
OMAP 1710
Processor
+
-
