Identifying Radio Controls

English

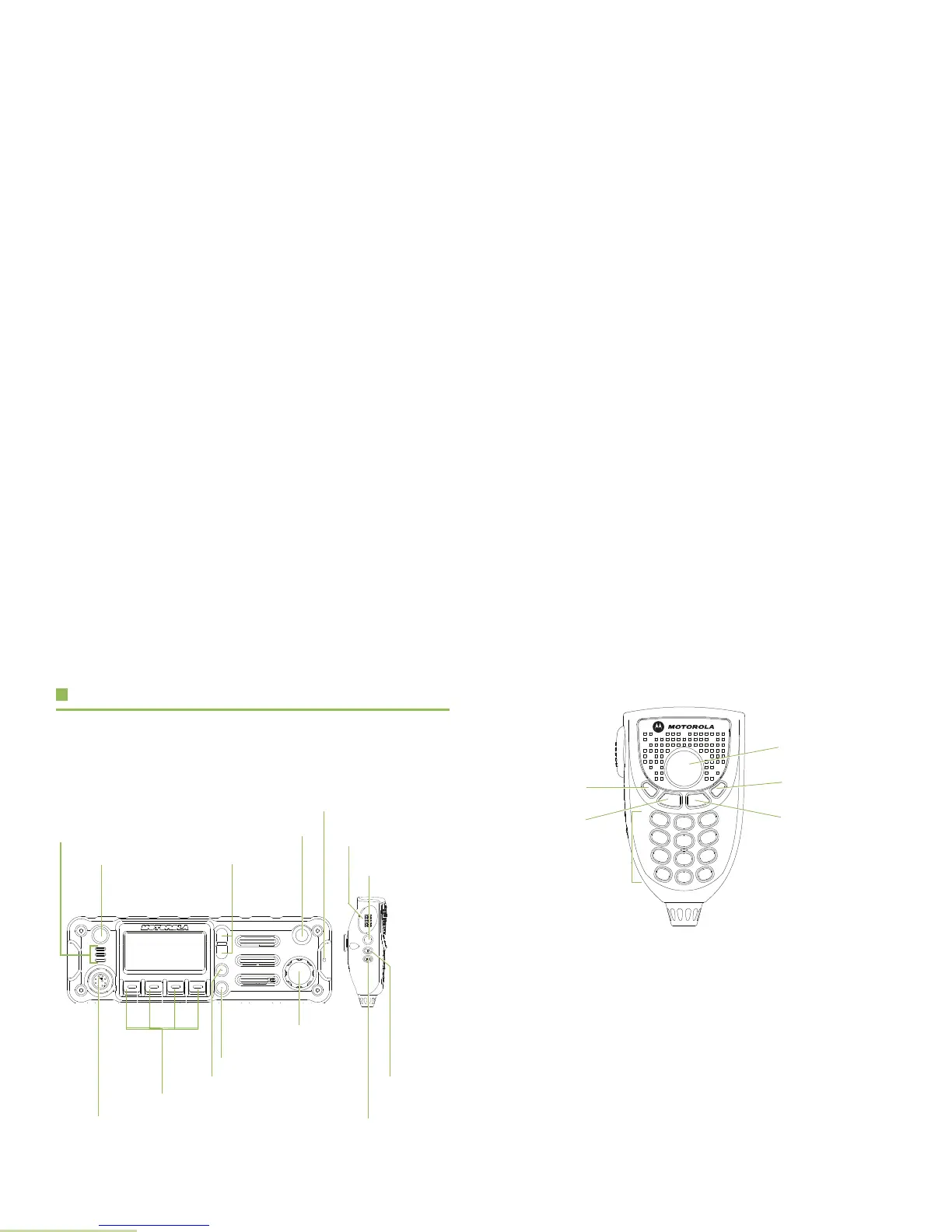

Radio Parts and Controls

O2 Control Head and Microphone

Note: The microphone is not part of a radio. It is an optional

accessory.



Power Button

LED Indicators

Emergency Button*

Push-to-Talk

(PTT) Button

Accy No-Dot

Button (Purple)*

Accy 2-Dot

Button*

Multi-function Knob

(MFK)*

Home Button

Menu Select Buttons*

Accessory Port (Microphone)

*These controls/buttons are programmable.

Accy 1-Dot

Button*

Dimmer Button

Up & Down Buttons*

** Your radio’s hardware is Bluetooth ready.

Check with your dealer or system administrator for more details

of all the features supported

Bluetooth Indicator**

Home Button

(Microphone)

Data Feature

Button*

Okay/Select

Button (



)

Cancel Button

(



)

Navigation

Button

(Microphone)

Keypad

*This button is programmable.
