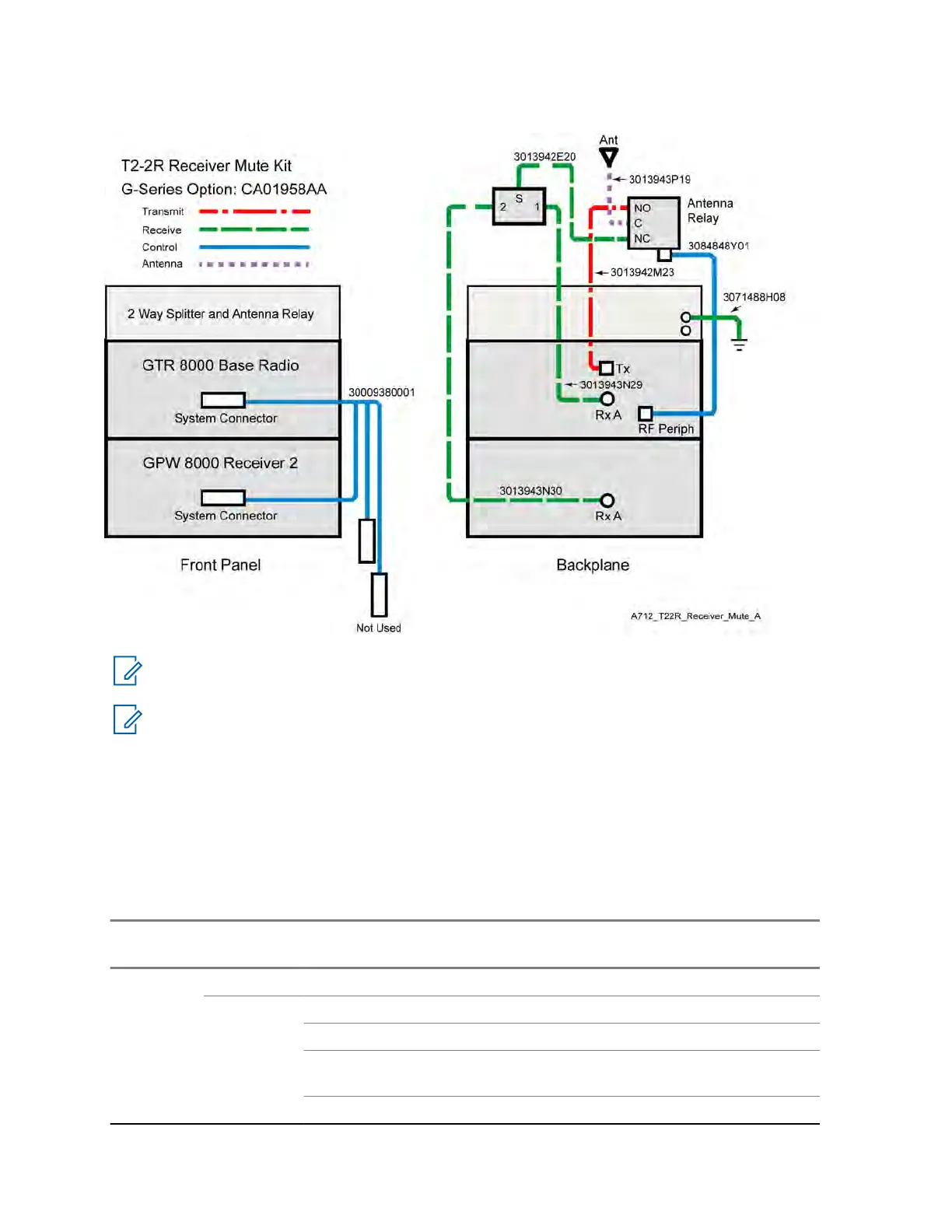

Figure 120: T2-2R Receiver Mute Option Kit Wiring Diagram
NOTICE: See System Connector Ports (Conventional) on page 112 for a detailed description of
the system connector pinouts.
NOTICE: See Figure 122: T4-4R Receiver Mute Configuration
on page 286 for an example of a
Receiver Mute configuration. However, the T2-2R Receiver Mute configuration only has one
GPW 8000 Receiver.
A.1.1.1
T2-2R Receiver Mute Option Kit Parts List
The required hardware and cables for the CA01958AA T2-2R Receiver Mute option kit are listed in this
section.
Table 78: T2-2R Receiver Mute Option Kit Parts List
FRU Kit Part Number
Description Quanti-
ty
DLN6795
A
T2-2R RECEIVER MUTE 1
CLN8788
A
HARDWARE, T2-2R RECEIVER MUTE 1
0182017V14 SPLITTER, 2 WAY 1
0285854Y01 NUT, M6-GROUND WIRE TO STUDS
ON TRAY
2
0310909E32 SCRMCH M3X0.5X8 SPLTR MTG 4
