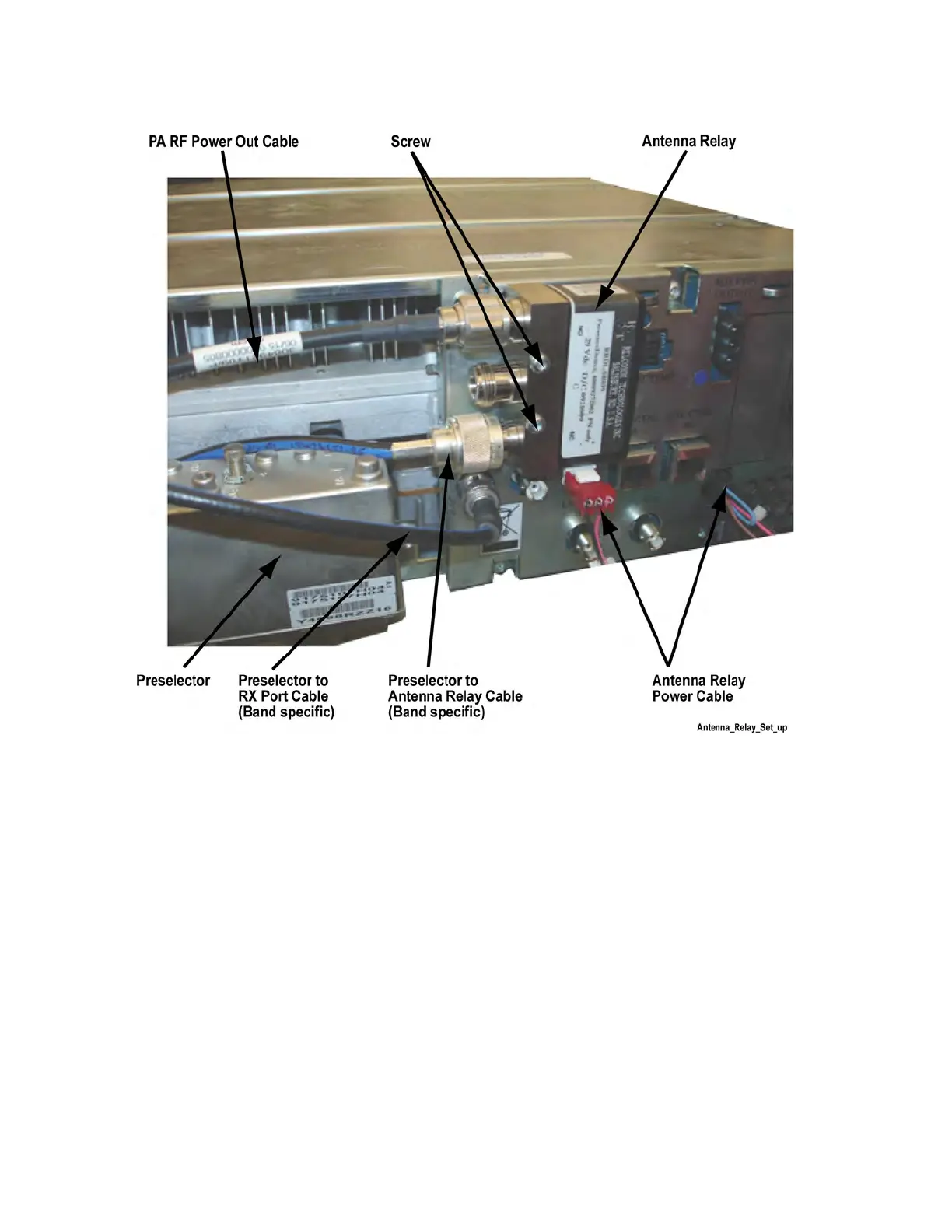

Figure 27: Antenna Relay Module Mounted on Backplane Cover

On base radios equipped with the peripheral tray, the antenna relay is mounted on the peripheral tray.

MN003286A01-E

Chapter 2: GTR 8000 Base Radio Theory of Operation

78
