Introduction Mobile Radio Description 1-5

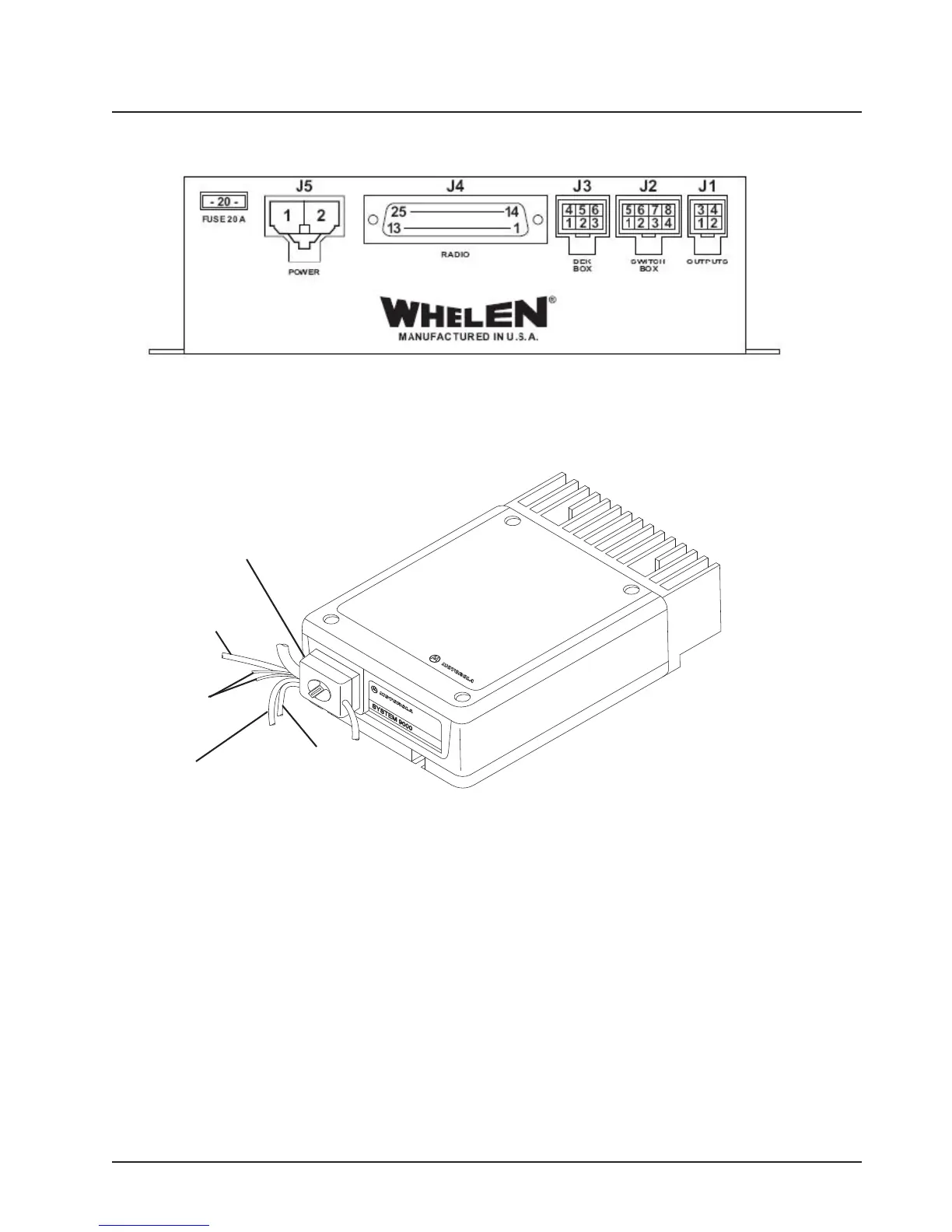

Figure 1-22. Front View of SB9600 Whelen Siren
Figure 1-23. Siren/PA Cable Connections
Siren/PA Unit
T-Cable for Dual Control
Head Only
To Switch Box or
DEK
Speaker
Leads
Red Fused Cable
Connects to Battery
Positive Terminal
Black Chassis
Ground Cable
