1-8 Introduction Standard Configurations
1.2.2 Remote Mount Configuration
In the remote mount configuration, the transceiver and the control head are mounted separately in
the vehicle. The O2, O5, O7 and O9 control heads are mounted in remote trunnions near the
operator. The transceiver and control head are mounted using a trunnion or other mounting
hardware. If the transceiver is located in a car trunk, ensure that it is mounted securely and that
sufficient cooling is provided. Do not cover the transceiver with baggage, blankets, and others.
NOTE: The keypad mic should only be plugged into the Mobile Microphone Port (MMP) connector
located on the control head, in either dash mount or remote mount configuration.

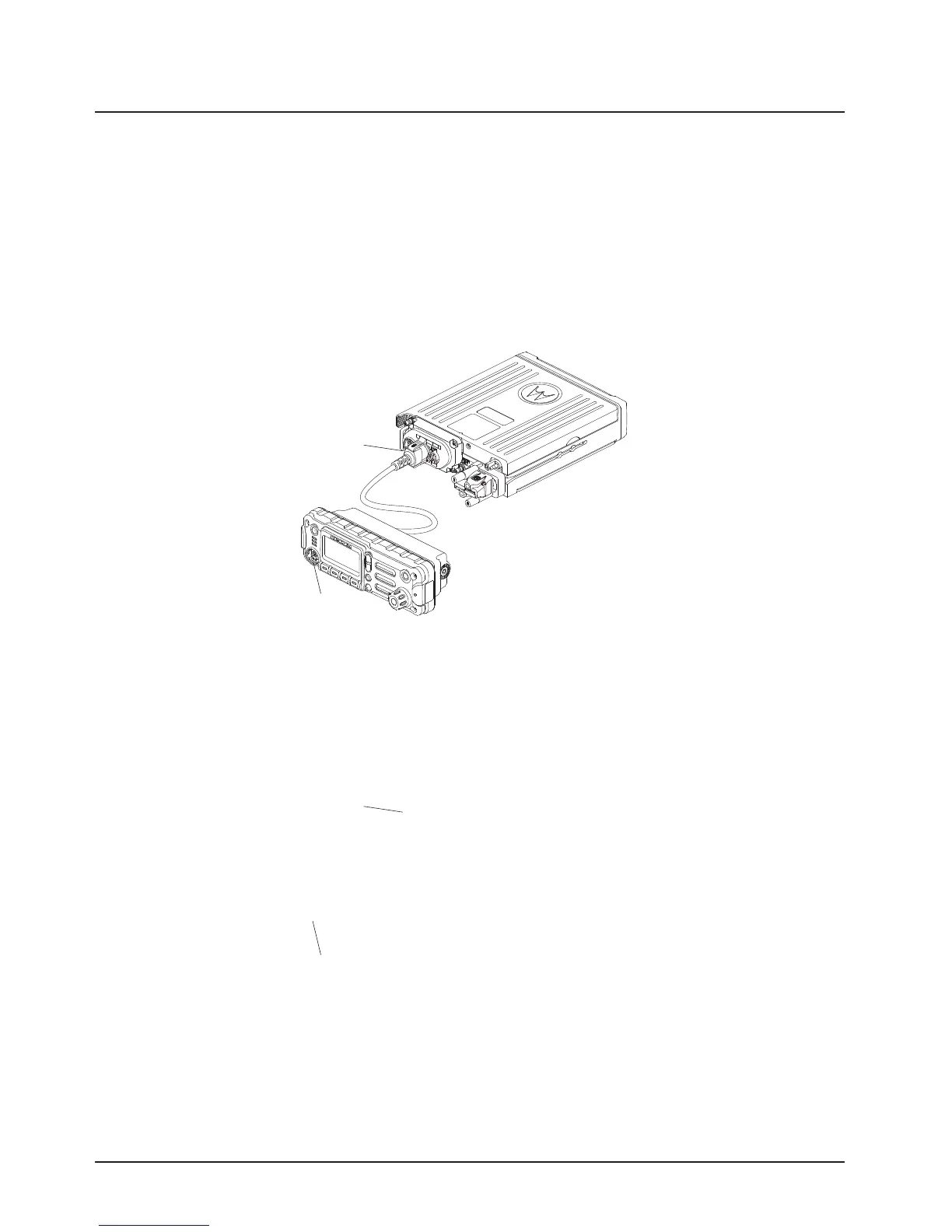

Figure 1-28. Remote Mount Configuration with Mid Power Transceiver, Transceiver Interface Board,
CHIB Rear Assembly and O2 Control Head
Figure 1-29. Remote Mount Configuration with High Power Transceiver, Transceiver Interface Board,
CHIB Rear Assembly and O2 Control Head
MMP
MMP
MMP
MMP
