2-6 Standard Configurations Planning the Installation

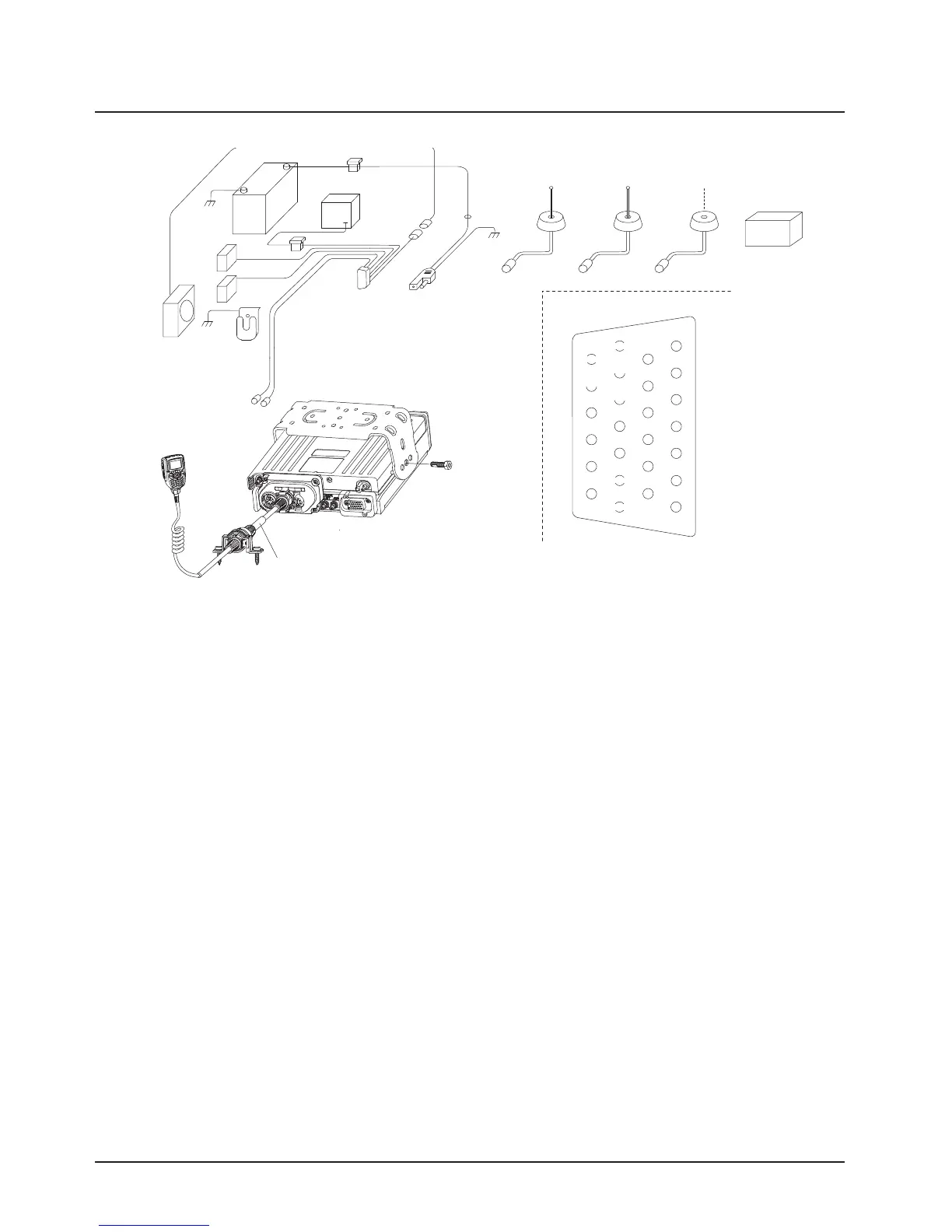

Figure 2-10. Radio Installation (O3 Mid Power Remote Mount)
Figure 2-11. Radio Installation (O3 High Power Remote Mount)
BATTERY
HORN
RELAY
LIGHT
RELAY
CH
hang
up
box
SPEAKER
O3
5m (17ft)
CABLE (PMLN4958)
EMERGENCY
SWITCH
FUSE
FUSE
BLOCK
(+)
(-)
RED LEAD
FUSE
FIREWALL
HOLE
MOUNTING
SCREW
IGN SENSE (ACC)
P2
(SEE J626
PINOUT)
CABLE
HLN 6863
DC
POWER
CABLE
TRUNNION
ANTENNA
CONNECTION
ANTENNA 1
J2
REAR ACCESSORY CONNECTOR
1
7
8
14
13
20
21
26
SPKR-
SPKR+
VIPOUT 2
12V
(RELAY)
VIPOUT 1
12V
(RELAY)
GROUND
EMERGENCY
IGN SENSE
(ACC)
ANTENNA
CONNECTION
ANTENNA 2
WIFI (OPTIONAL)
ANTENNA
CONNECTION
ANTENNA 3
GPS (OPTIONAL)
Multi-
plexer
Multi-
plexer
