MN003109A01_aa
2-8 Standard Configurations Planning the Installation

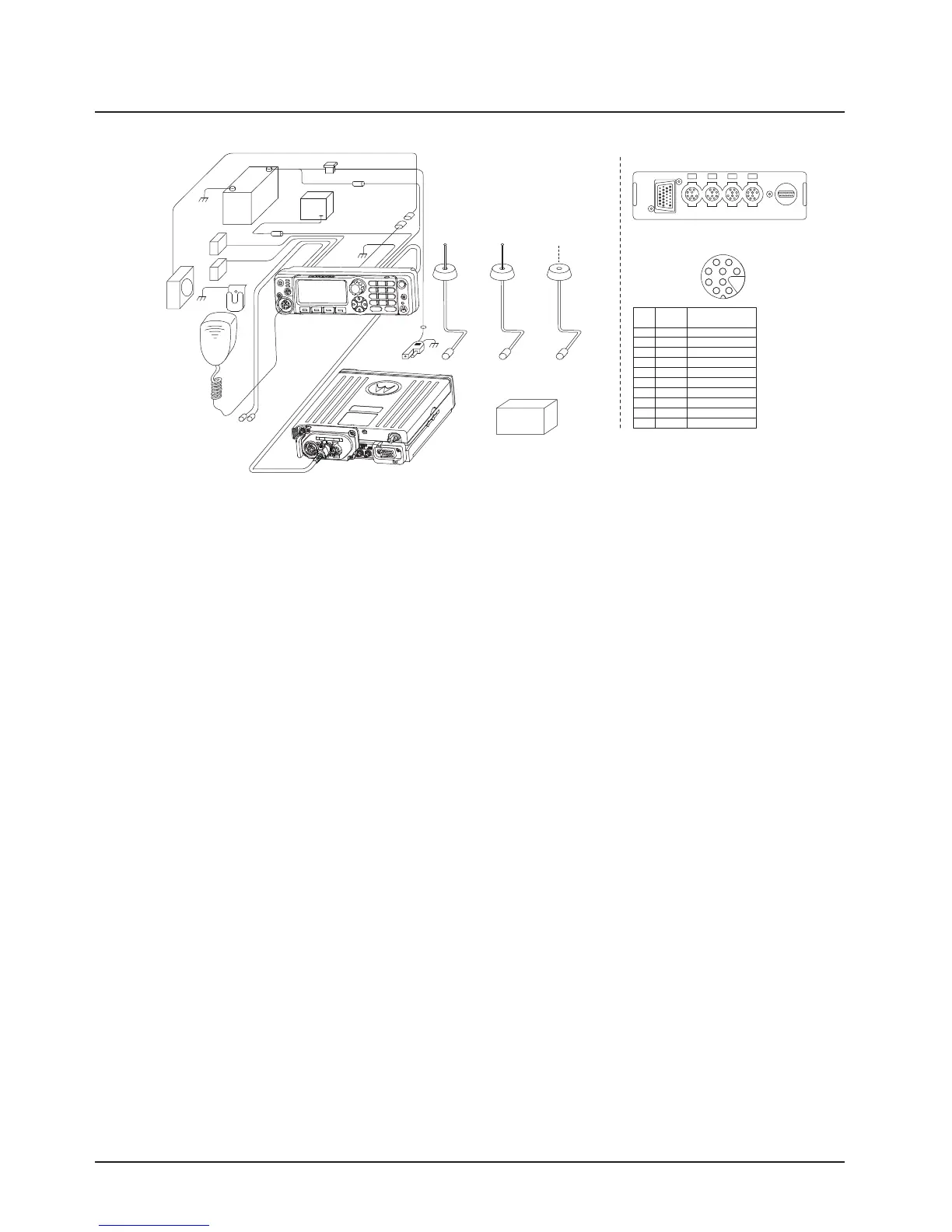

Figure 2-14. Radio Installation (O7 Mid Power Remote Mount)
Figure 2-15. Radio Installation (O7 High Power Remote Mount)
Refer to Section 2.1.3.2 and Section 4.2.1 for further details and recommended wiring of emergency
in remote mount.
PWR
SPK
J400-1 RED SWB +
J400-2 GREEN GND
J400-3 - NO PIN
J400-4 - "VIP" detect: GPIO=HIGH
J400-5 BLUE VIP_OUT_1
J400-6 YELLOW VIP_OUT_2
J400-7 BLACK VIP_OUT_3
J400-8 WHITE VIP_IN_1 (VIP_IN GPIO)
J400-9 ORANGE VIP_IN_2 (VIP_IN GPIO)
J400-10 VIOLET VIP_IN_3
CAN CAN DEK
VIP
J400
ACC USB
PORTS ON REAR OF REMOTE CONTROL HEAD
VIP CONNECTOR PIN-OUT
J400
6
9
10
7
4
2
5
8
1
Radio
Pin
Number
VIP Cable
(HKN6196_)
Wire Color
Function
BATTERY
HORN
RELAY
LIGHT
RELAY
MIC
CLIP
SPEAKER
MIC
EMERGENCY
SWITCH
RED LEAD
FUSE
BLOCK
YELLOW
LEAD
BLACK
LEAD
(+)
(-)
FUSE
FUSE
CONTROL HEAD
FIREWALL
HOLE
ANTENNA
CONNECTION
ANTENNA 1
DC POWER
CABLE
RADIO
FUSE
ANTENNA
CONNECTION
ANTENNA 2
WIFI (OPTIONAL)
ANTENNA
CONNECTION
ANTENNA 3
GPS (OPTIONAL)
Multi-
plexer
Multi-
plexer
