Motorola ASTRO Digital Spectra Service Manual

5-22 Troubleshooting Charts
October 28, 2002 6881076C25-D

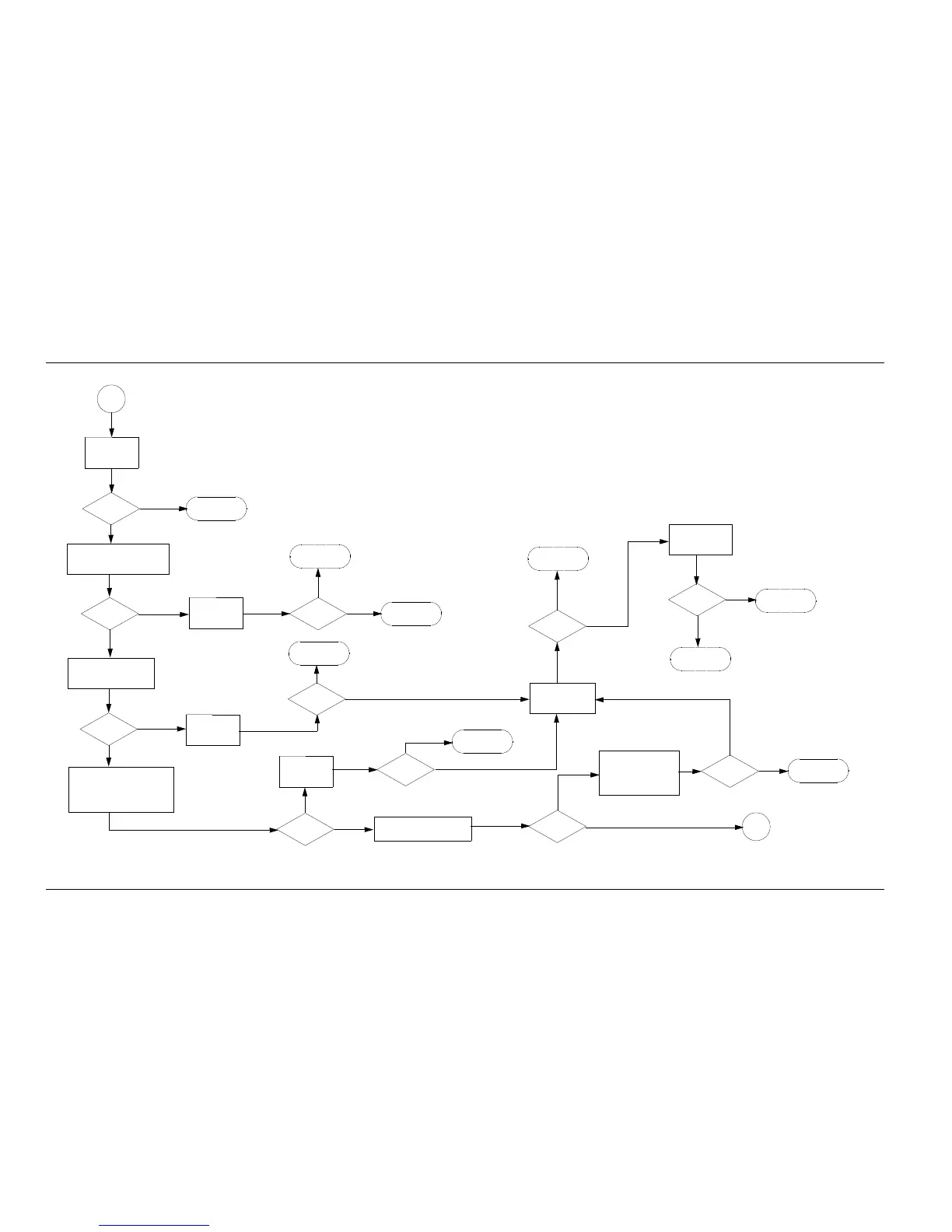

Chart C.28 ASTRO Spectra Plus VOCON TX Modulation Failure Sheet 2 of 4
A
C
Inspect U201
OK?
Repair component
Measure waveform at U201-39
should match Figure 6-12
Waveform
correct?
Inspect R200,
R201, and C201
Repair components
OK?
Repair oscillator
circuit
16.8MHz
Clock
Check SSI connections per
Figure 5. U201-35 = STD - T1
U201-34 = FS -T2
U201-33 = SCK - T3
OK?
Check SPI connections per
Figure 6. U201-44 = ADDAG_SEL
-T1
U201-43 = QSCKA - T2
U201-42 = MOSIA - T3
U201-41 = MISOA - T4
Inspect U201-
35, 34, 33
OK?
OK?
OK?
OK?
OK?
Inspect U201-
41, 42, 43, 44
Measure wavefoorm at U402-17,
should match Figure 6-17
Repair U201
Repair U201
Check SAP connections per
Figure 8. U402-7 = FS -T1
U402-11 = DCLK - T2
U402-13 = TXD - T3
U402-10 = PWRD - T4
OK?
OK?
Replace U201
Check Patriot supplies
L300 - T1 -3.0V
L301 - T2 - 1.8V
Repair regulator
circuit
Check Patriot clocks
C326 - T1 - 16.8MHz
R428 - T2 - 32kHz
Inspect and repair
Patriot IC - U300
Repair proper clock
circuit
Yes
No
Yes
No
Yes
No
Yes
No
No
Yes
Yes
No
No
Yes
No
Yes
Yes
No
No
Yes
No
Yes
Continued on
next page
