Motorola Canopy User Manual

AP_CMM2 User Manual Pa
g
e 19 of 49
5.7 GHz Plan
Direction of Access Point sector Frequency Sector ID Symbol
North – (0°) 5.745 GHz 0 A
Northeast – (60°) 5.765 GHz 1 B
Southeast – (120°) 5.785 GHz 2 C
South – (180°) 5.745 GHz 3 A
Southwest – (240°) 5.765 GHz 4 B
Northwest – (300°) 5.785 GHz 5 C
Multiple Access Points Clusters
When deploying multiple Access Point cluster in a given area it is recommended that the clusters
be aligned in the following manner.
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C
A
B
C

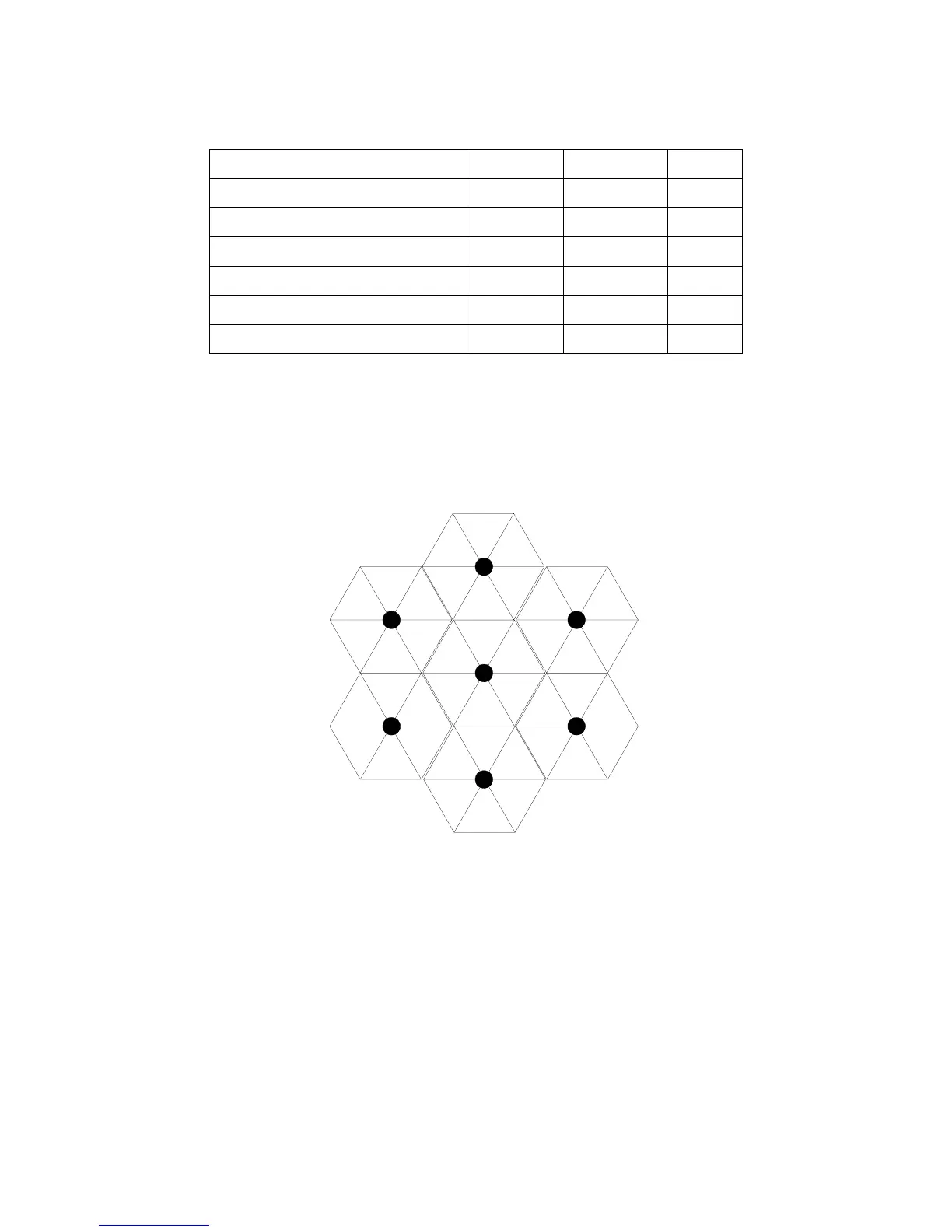

Figure 6: Laying out multiple Access Point clusters
