2 OVERVIEW
Front Panel
The front panel controls provide functional navigation if the remote control is lost or is
temporarily out of service. Certain functions, such as those requiring a numeric entry,
require a remote control. Some connectors are not enabled and require the support
of application software.

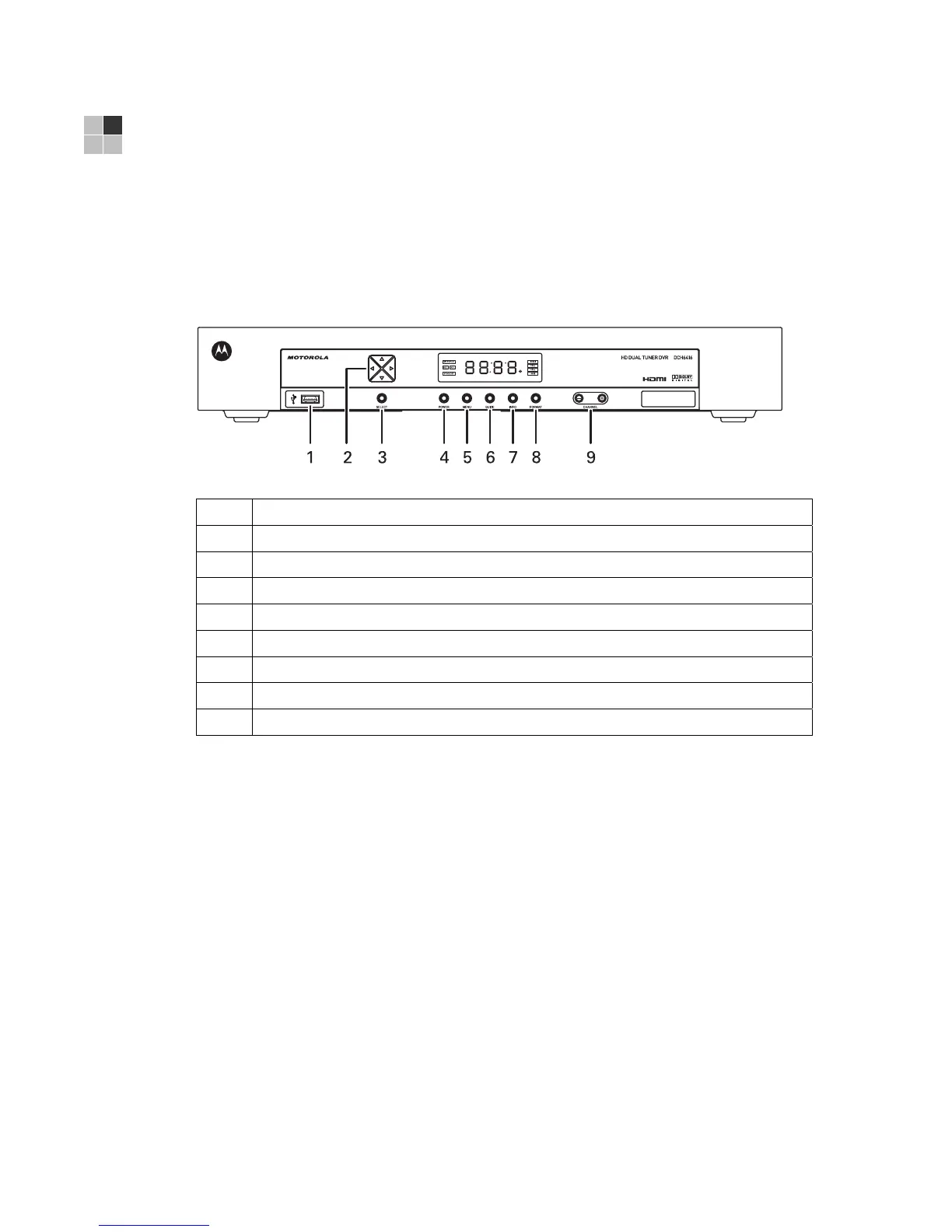

Figure 2-1 Front panel
Table 2-1 Front panel
1 USB connector
2 Cursor—menu navigation
3 Select—selects menu options
4 Power—turns the receiver on and off (standby)
5 Menu—displays the menu
6 Guide—displays the program guide
7 Info—displays current channel and program information
8 Format*—change the video output format
9 Channel—changes channel up or down
*The availability of certain features is dependent upon application support.
Front Panel Format Button*
The Format button located on the front panel of the DCH6416 allows you to quickly
change the video output format on the Component Video (YPbPr) and HDMI outputs
of the product. The DCH6416 is capable of providing the following video formats on
the YPbPr and HDMI video outputs:
• High Definition 1080i (1920 x 1080 pixels)
• High Definition 720p (1280 x 720 pixels)
• Enhanced Definition 480p (720 x 480 pixels)
• Standard Definition 480i (720 x 480 pixels)
The Format button is intended to allow you to select a video output format that is
compatible with a connected display device. Some televisions may not support all
