3 INSTALLATION
18
Cabling to a Standard-Definition TV and Audio Receiver
To connect to an audio receiver, such as a home mini system, use a daisy-chain
cabling connection. The A/V configuration illustrated below enables digital stereo
recording, including Dolby Surround sound. Use only one set of composite input
connectors on the stereo:

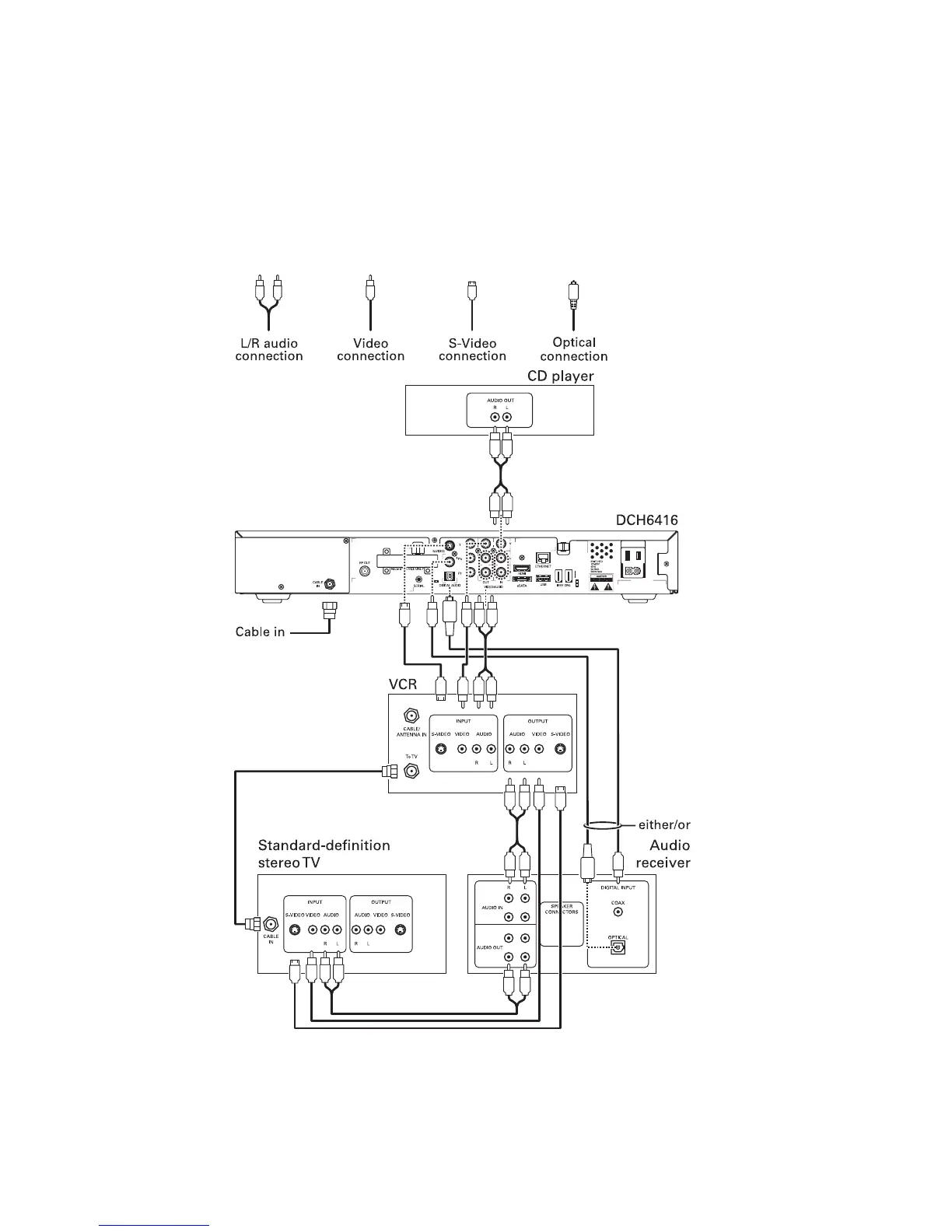

Figure 3-4 Cabling an audio receiver
The video connections shown in this illustration do not support HDTV. For HDTV
connection information, see Cabling to an HDTV for Video in this section.
