4 DIAGNOSTICS
30

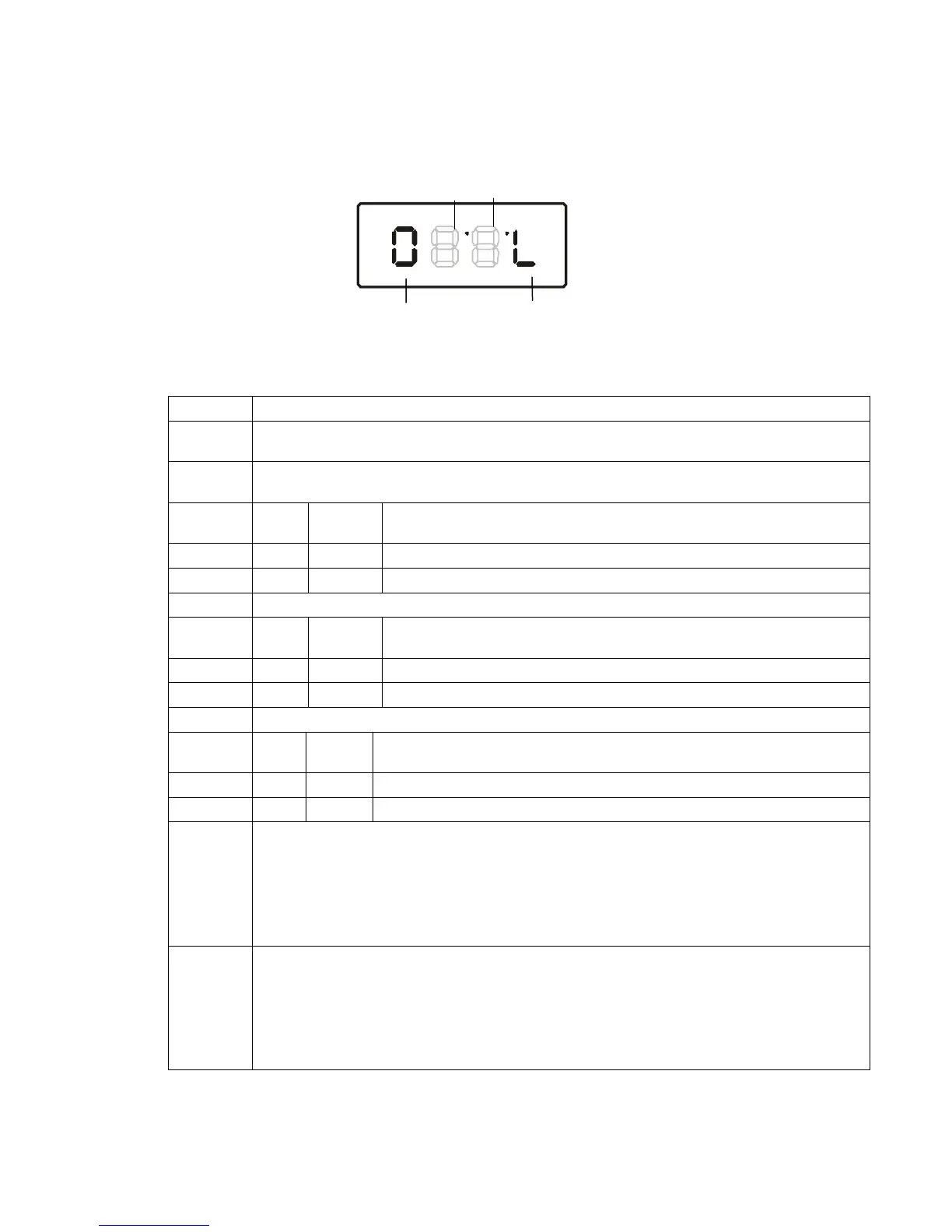

Figure 4-4 Front panel display for the OOB diagnostic
The Out-Of-Band Status fields are:
Field Description
OOB
Frequency
Indicates the OOB tuner center frequency, from 70 to 130 MHz.
Carrier
Lock
Indicates whether the OOB receiver is locked to the carrier:
OSD Front
Panel
Description
YES L Carrier locked
NO U Carrier unlocked
Data Indicates whether data is being carried by the OOB and EMM traffic, which is tracked separately:
OSD Front
Panel
Description
YES On OOB data detected within last 5 seconds
NO Off OOB data not detected within last 5 seconds
EMM Data Indicates whether EMM data is being carried on the OOB stream:
OSD Front
Panel
Description
YES On EMM data detected within last 5 seconds
NO Off EMM data not detected within last 5 seconds
SNR When carrier lock has been established, displays an estimate of the carrier signal-to-noise ratio
in dB, with an explanation:
GOOD—Good value
FAIR—Marginal signal level, check the signal
POOR—Unusable signal
INVALID—Invalid SNR value
AGC When carrier lock has been established, displays an estimate of the AGC as a percentage, with
an explanation:
GOOD—Good value
FAIR—Marginal signal level, check the signal
POOR—Unusable signal
INVALID—Invalid AGC value
Data activity
indicator
EMM data
activity indicator
OOB
diagnostic
indicator
Carrier lock indicator
(
L = locked
,
U = unlocked
