4 DIAGNOSTICS
32
3. When the desired new frequency has been selected, press the SELECT key to
start the search. The manual frequency search will last up to 40 seconds. As the
set-top searches, the frequency being searched for will flash on the front panel.
On the OSD, the “MAN FREQ” line of text will be cleared, the “HUNT MODE” will
display “FIX” to indicate a search on a fixed frequency, and the “OOB FREQ” field
will change to the frequency being searched for.
4. If the frequency is found with the proper EMM Provider ID, then the front panel
will display the normal OOB receiver status. The OSD “LKC” field will change to
display the new frequency.
5. If after 40 seconds the frequency search is not successful, the product will
perform a warm reset.
6. To abort a search without waiting the 40 seconds, the
POWER key can be
pressed to cause an immediate warm reset.
Note: The front panel will display “hunt” after a cold reset from the front panel. This
indicates that the product is in a Round Robin Hunt Mode. “hunt” will continue to be
displayed until the proper stream is detected.

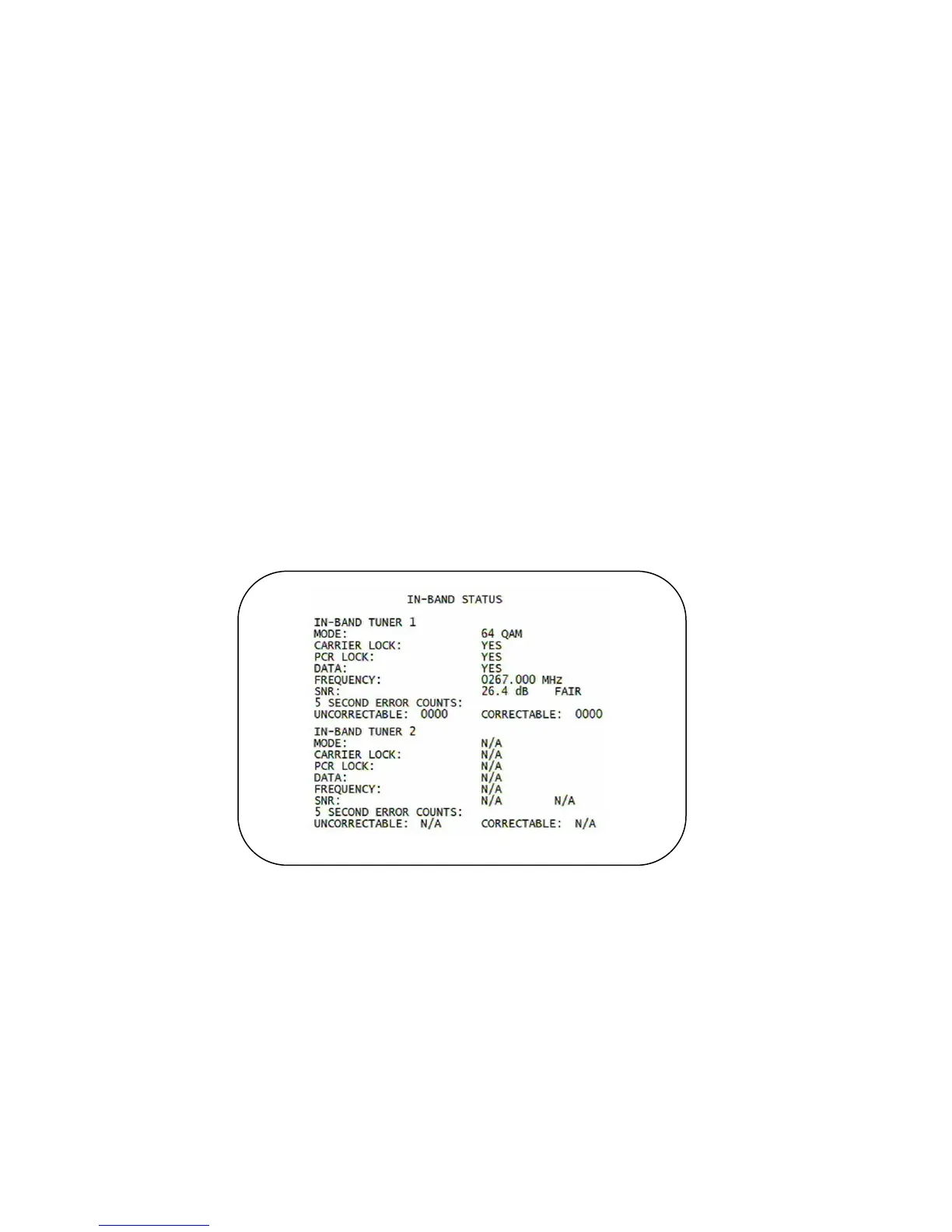

In-Band Status
This diagnostic displays the in-band status for the last attempted tuned channel. The
information is updated every 5 seconds.
