4 DIAGNOSTICS
58

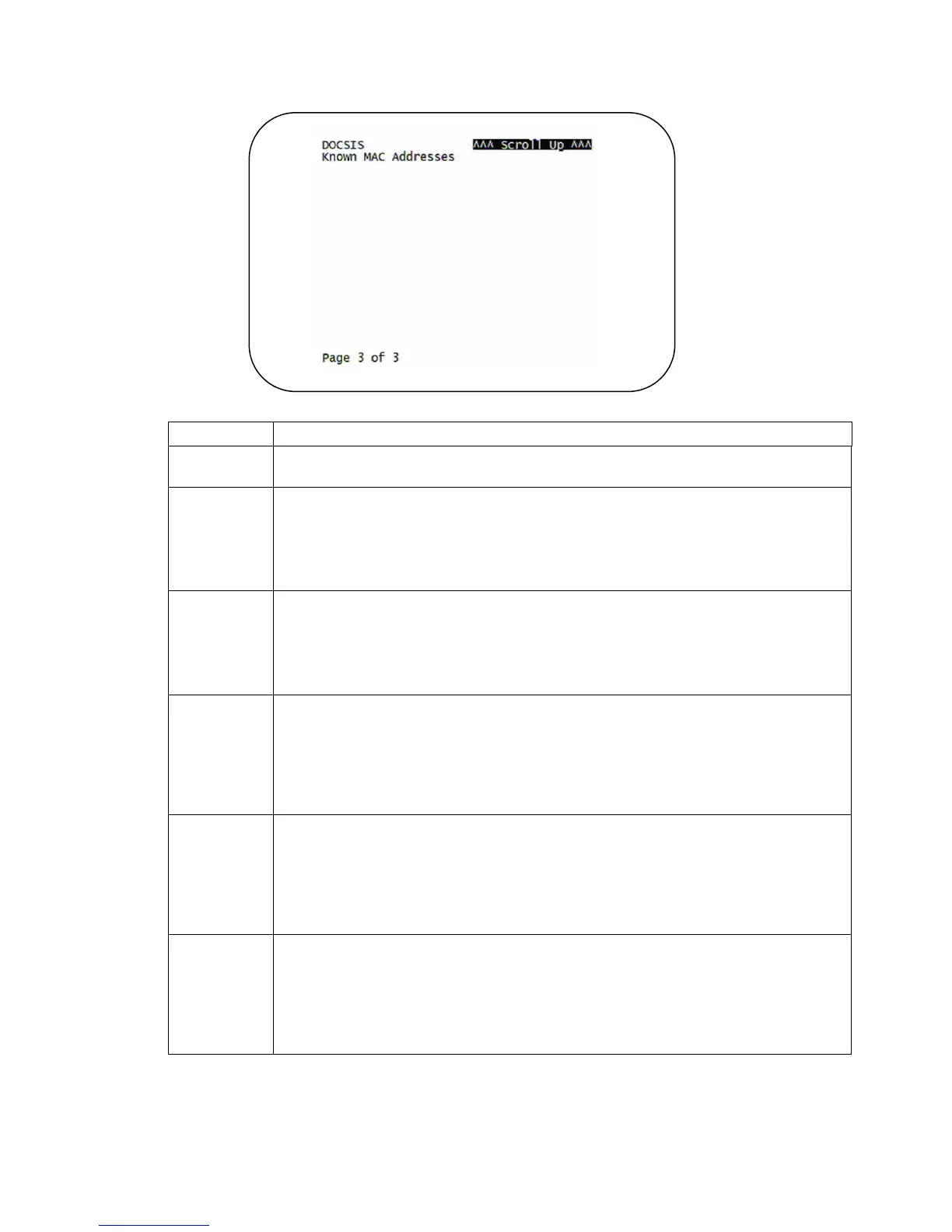

The fields are:
Field Description
DOCSIS
Enabled
For a DOCSIS-enabled set-top, YES. Otherwise, NO.
Acquire DS
Channel
The DOCSIS downstream channel acquisition status:
• YES—The downstream channel is acquired
• NO—The set-top is acquiring the downstream channel
• N/A—The value is invalid or cannot be retrieved, or DOCSIS is not enabled
Obtain US
Parameters
The DOCSIS upstream channel descriptor (UCD) acquisition status:
• YES—The UCD is acquired
• NO—The set-top is acquiring the UCD or the downstream channel
• N/A—The value is invalid or cannot be retrieved, or DOCSIS is not enabled
Establish IP
Connectivity
Displays whether the cable modem has acquired its IP address, typically from a Dynamic
Host Configuration Protocol (DHCP) server:
• YES—The IP address is acquired
• NO—The set-top is acquiring its IP address
• N/A—The value is invalid or cannot be retrieved, or DOCSIS is not enabled
Obtain
Configuration
File
Displays whether the cable modem has downloaded its DOCSIS cable modem
configuration file from the TFTP server:
• YES—The cable modem configuration file has been successfully downloaded
• NO—The set-top is downloading its cable modem configuration file
• N/A—The value is invalid or cannot be retrieved, or DOCSIS is not enabled
eCM
Registered
Displays whether the embedded cable modem has registered with the cable modem
termination system (CMTS):
• YES—DOCSIS registration is complete
• NO—DOCSIS registration is in progress, or the set-top could not register
• N/A—The value is invalid or cannot be retrieved, or DOCSIS is not enabled
