Disassembly/Reassembly Procedures Radio Disassembly – Detailed 5-15
3. Disconnect the display flex from the keypad board and remove it from the front kit.

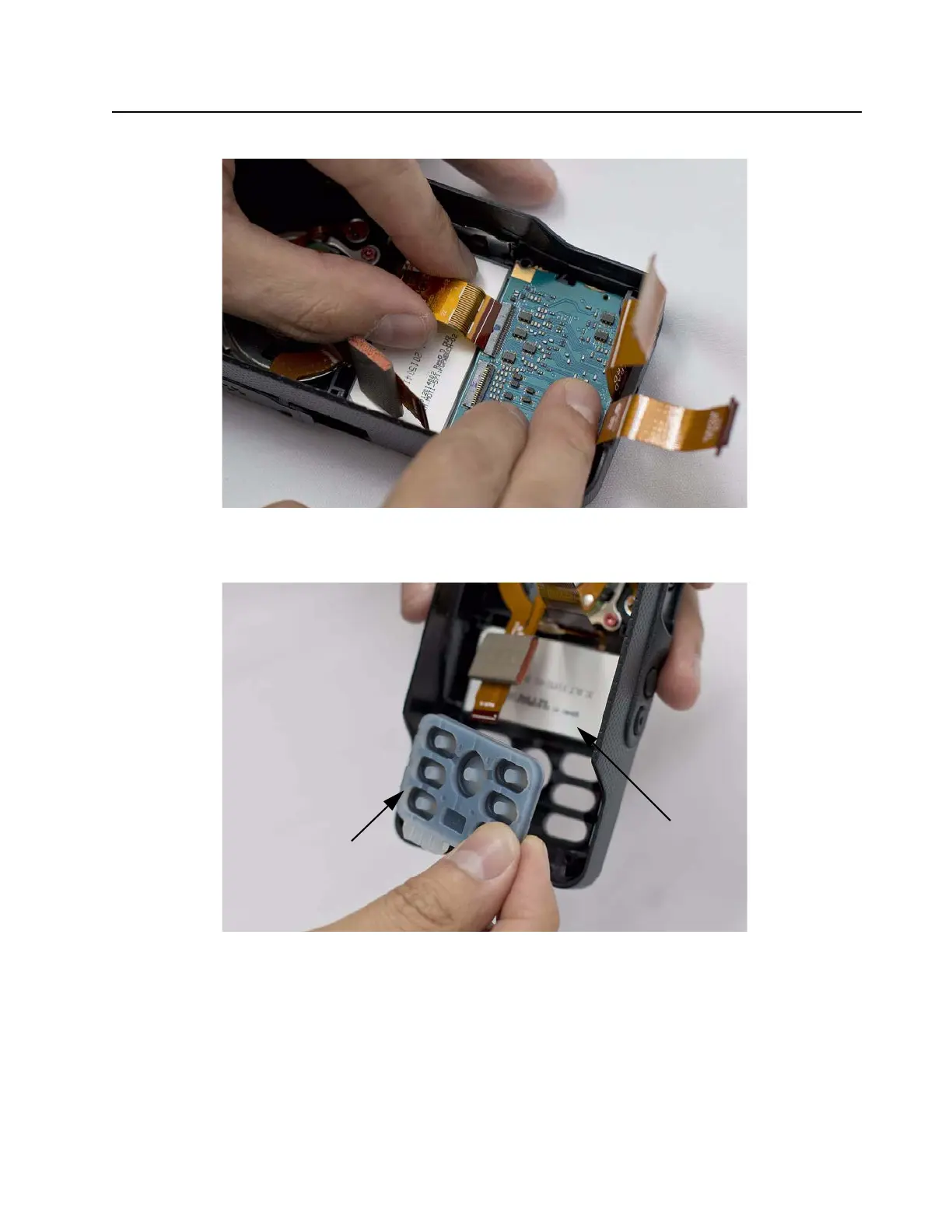

Figure 5-15. Display flex removal
4. Remove the keypad and display module from the front kit.
Figure 5-16. Keypad removal
Keypad
Display module
