Motorola DP2600E - 5.6.3 Keypad, Display, and Keypad Board Disassembly

5-14 Disassembly/Reassembly Procedures Radio Disassembly – Detailed
5.6.3 Keypad, Display, and Keypad Board Disassembly

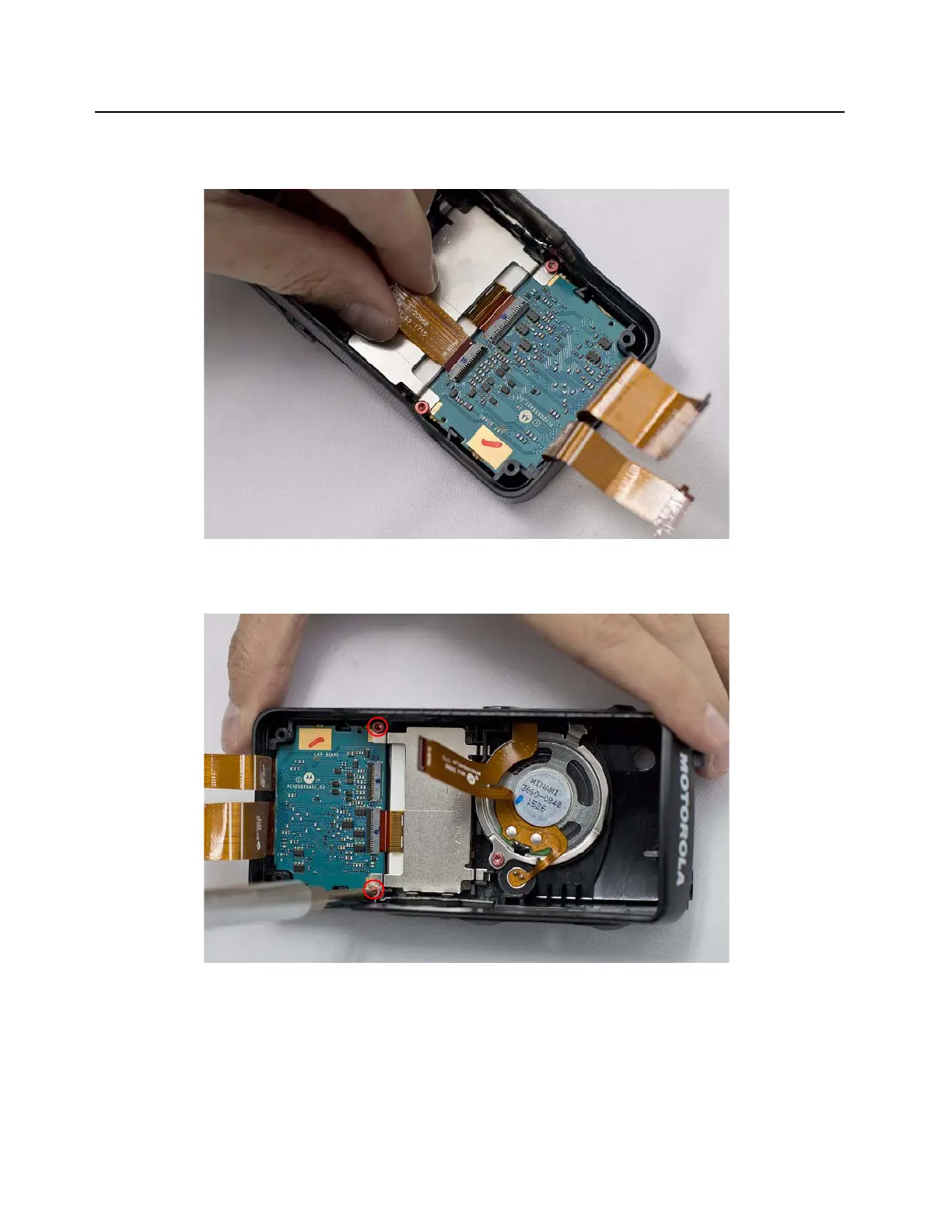

1. Disconnect the UC-audio flex.
Figure 5-13. UC-audio flex removal
2. Remove the display retainer after removing the 2 K18 screws.
Figure 5-14. K18 screw removal
