5-26 Disassembly/Reassembly Procedures Radio Reassembly - Detailed
5.7.3 Back Kit Reassembly

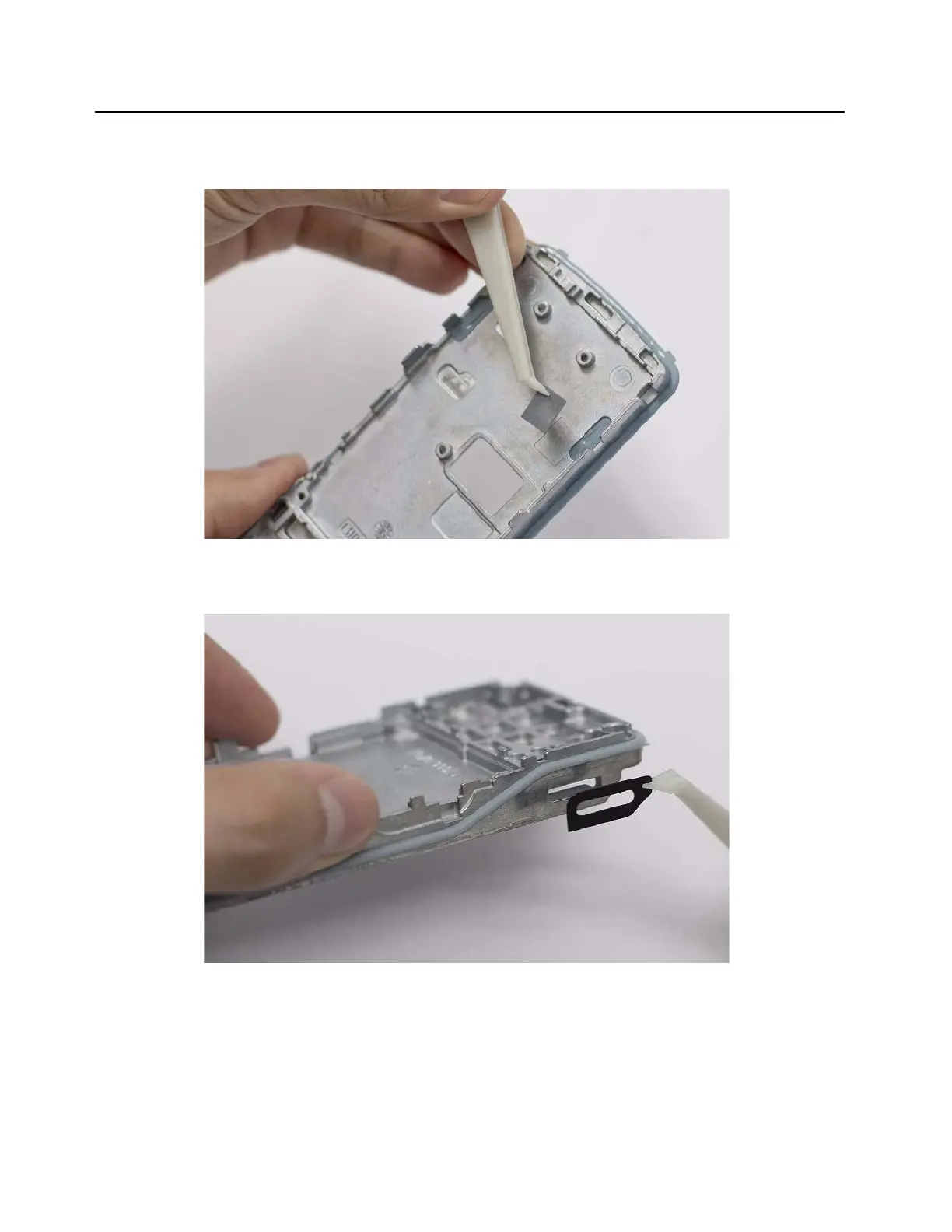

1. Replace the thermal pad on the chassis.
Figure 5-35. Thermal pad
2. Affix the chassis label on both the left and right side of the chassis.
3. Replace battery contact seal on the chassis. Orientate the battery contact seal so that the
