Radio Disassembly — Detailed 2-5
6.0 Radio Disassembly — Detailed
6.1 Front Cover from Chassis Disassembly
1. Turn off the radio.

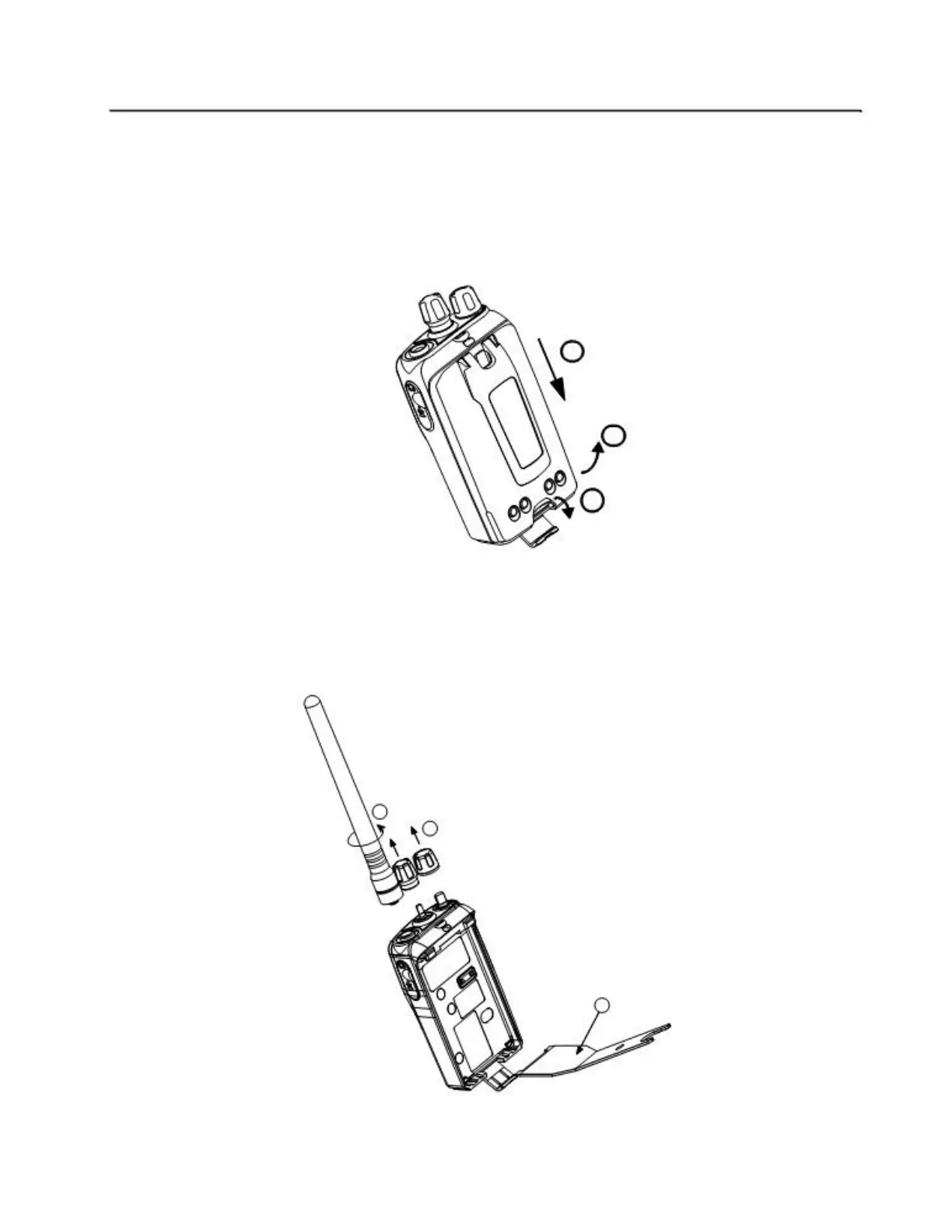

2. Unlatch the battery latch at the bottom of the radio (see “Figure 2-1”). Remove the battery by
gently lifting the hilt of the battery, nearest to the battery latch, away from the housing.
3
2b
2a
Figure 2-1
3. Slide the battery downwards to remove the battery.
4. Remove the antenna by unscrewing it (see “Figure 2-2”).
5. Pull the On/Off Volume and Channel knobs out of their shafts using the Chassis Opener (see
“Figure 2-2”).
4
5
6
Figure 2-2

Motorola Mag One Series Specifications

General

Power Output	VHF: 5W, UHF: 4W
Channels	16
IP Rating	IP54
Programmable Buttons	2
Voice Scrambler	No
CTCSS/DCS Codes	Yes
Scanning	Yes
Vox	Yes
Battery Type	Li-Ion
