Hardware Tuning Setup and Procedure 3-3
3. Connect the radio to the test equipment.
Ground Contact Finger
TEST BOX
Antenna Port
Acc 8 ohm 24 ohm
Jack
BNC BNC
Radio
Tx Rx
N Type
TEST EQUIPMENT
BNC
BNC
Input
Hi
Output
Lo

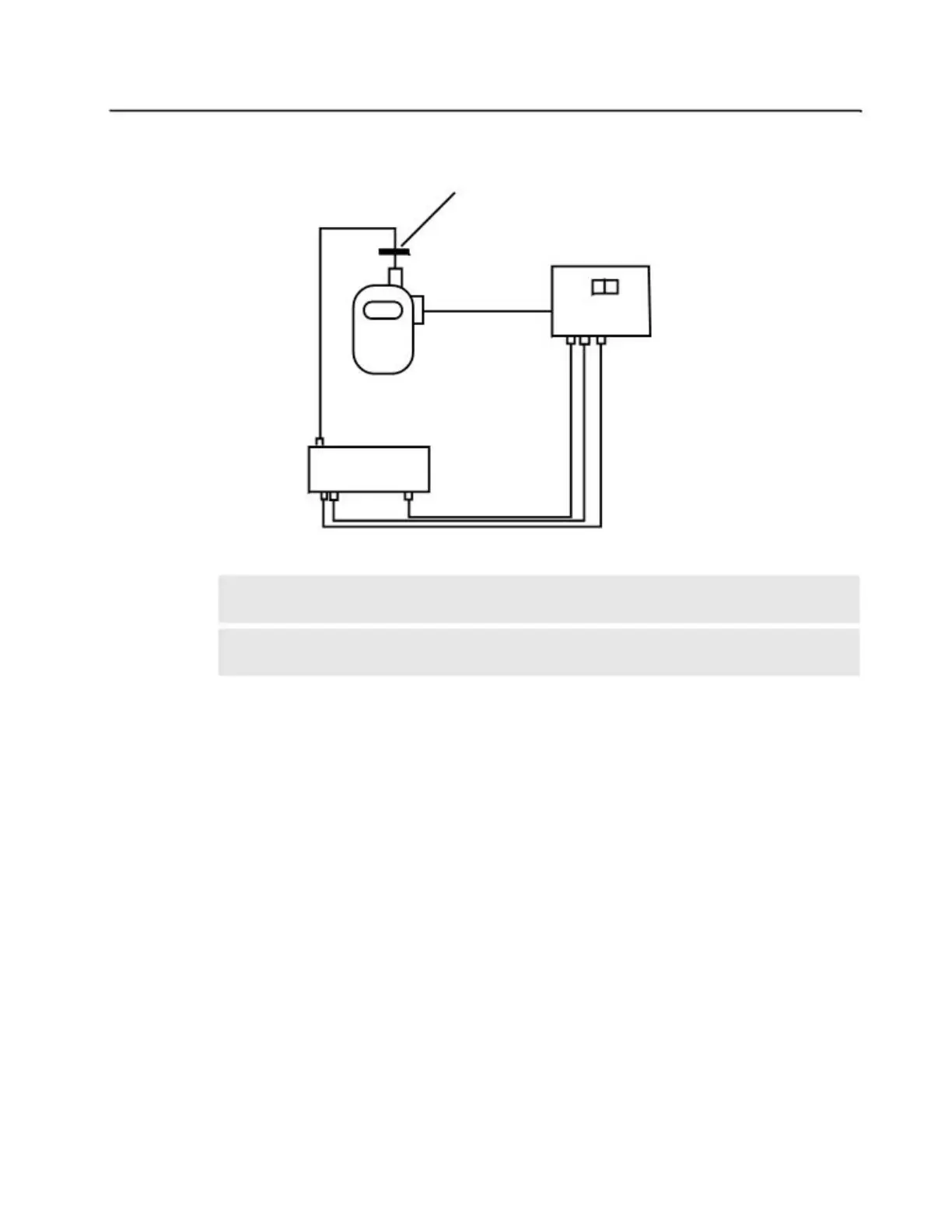

Figure 3-1 Radio Tuning Setup
NOTE On the Test Box, select 8 ohm resistance when using with PMUD2085A_, PMUE2384A_.
For all other kits, please select 24 ohm resistance.
NOTE The radio may need to be disassembled to the PC board level to access certain tuning
ports. For disassembly, refer to "Radio Disassembly — Detailed" on page 2-5
2.3 Transmitter Tuning
2.3.1 High Power
1. Connect the radio to power meter.
2. Set the radio to the appropriate tuning frequency (refer to Table 3-1).
3. Key up the radio.

Motorola Mag One Series Specifications

General

Power Output	VHF: 5W, UHF: 4W
Channels	16
IP Rating	IP54
Programmable Buttons	2
Voice Scrambler	No
CTCSS/DCS Codes	Yes
Scanning	Yes
Vox	Yes
Battery Type	Li-Ion
