Test Equipment 2-17
10.0 Test Equipment
Table 2-3 lists test equipment required to service the Mag One by Motorola Radios and other twoway
radios.
Table 2-3 Recommended Test Equipment
Motorola
Part No.
R2600
R1038
S1339A/220
Description Characteristics
Communication
Analyzer
Handheld Multimeter
RF Millivolt Meter 100mv to 3VRF
220V 100kHz to 1.2GHz
Application
Frequency/deviation meter and signal
generator for wide-range troubleshooting
and alignment
AC/DC Voltage and current measure-
ments
RF Level Measurements
11.0 Programming Cable (PMDN4043_R)

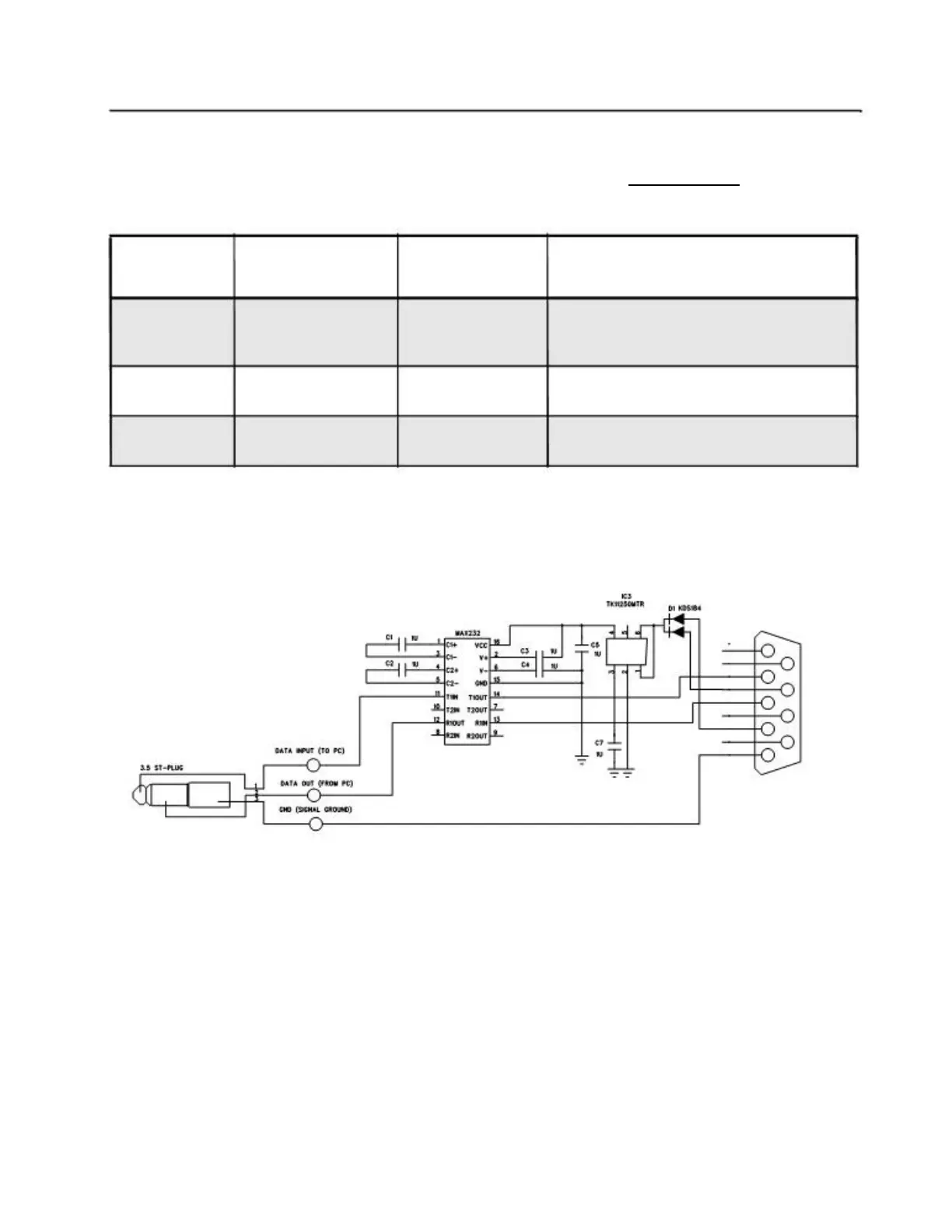

Figure 2-15 Programming Cable Schematic
