Radio Disassembly — Detailed 2-7

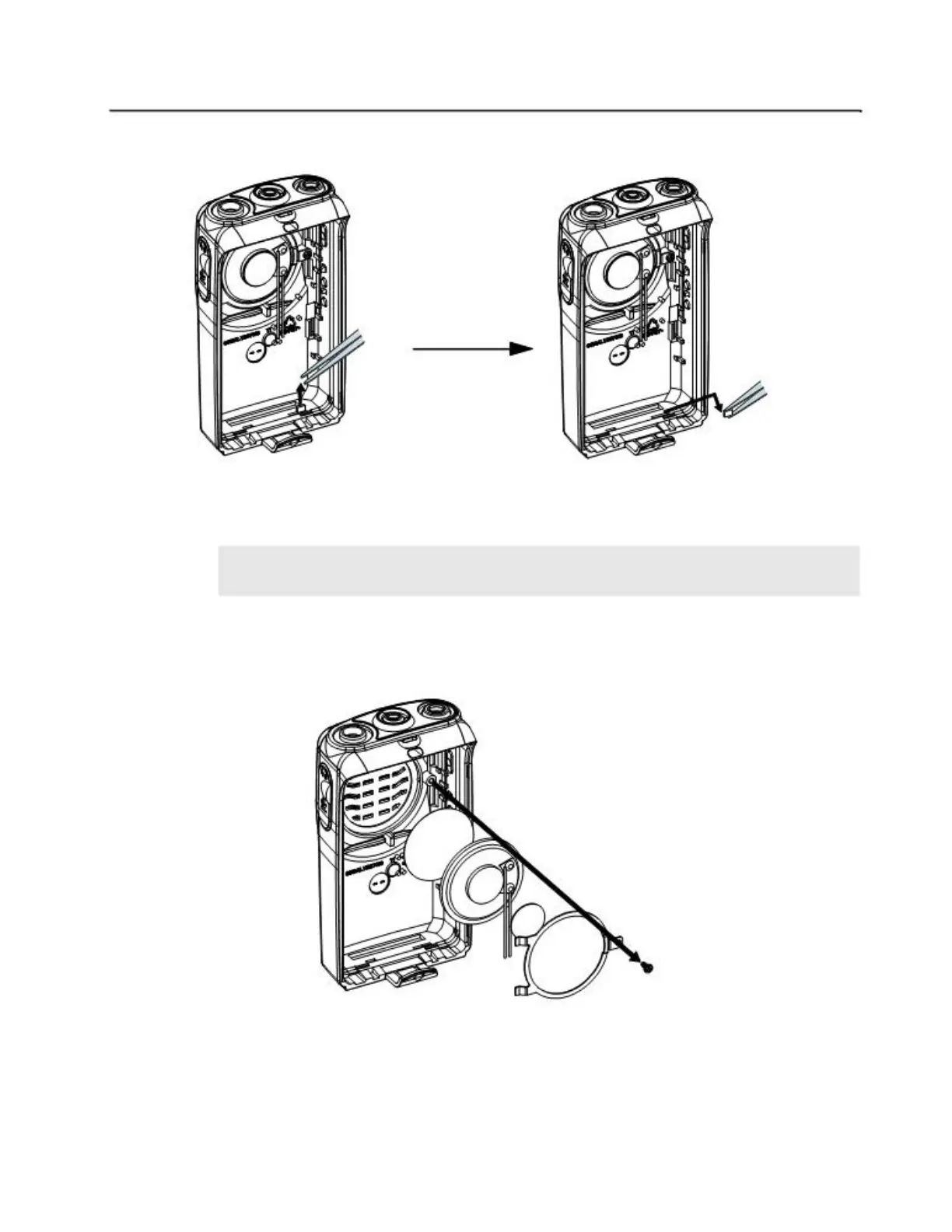

12. Slide the battery latch shaft out from the latch.
Figure 2-5
NOTE Proceed to perform steps 13, 14, and 15 only if there is a need to replace the speaker,
speaker bracket or speaker felt.
13. Unscrew the speaker bracket from the housing (see “Figure 2-6”).
14. Remove the speaker from on top of the speaker felt with a flat head screwdriver.
15. Remove the speaker felt from the grille area.
Figure 2-6

Motorola Mag One Series Specifications

General

Power Output	VHF: 5W, UHF: 4W
Channels	16
IP Rating	IP54
Programmable Buttons	2
Voice Scrambler	No
CTCSS/DCS Codes	Yes
Scanning	Yes
Vox	Yes
Battery Type	Li-Ion
