Radio Reassembly — Detailed 2-11

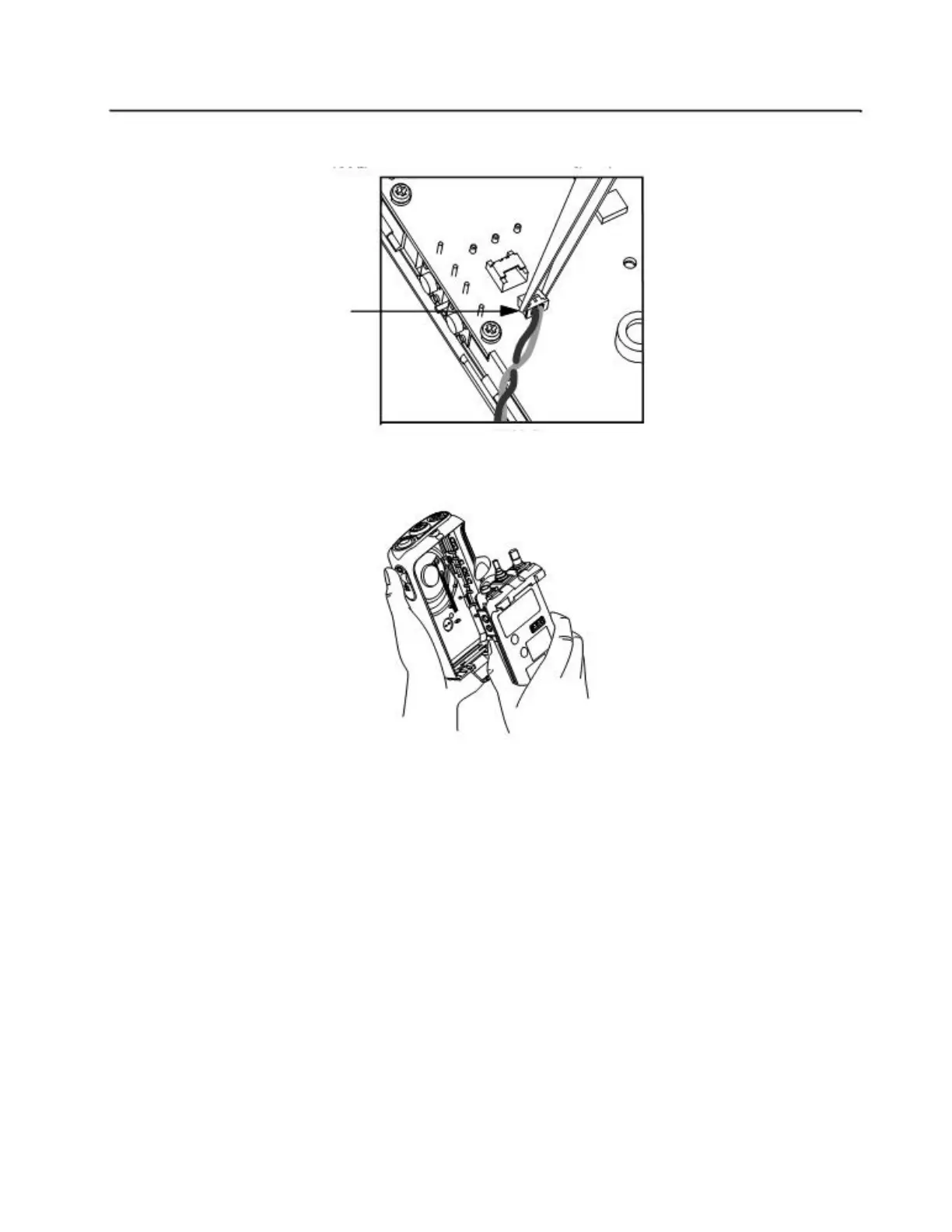

9. Connect the internal speaker connector to the PC board (“see “Figure 2-12”).
Speaker
Connector
Figure 2-12
10. Place the diecast into the front housing (see “Figure 2-13”).
Figure 2-13
11. Snap the front housing cover firmly into place on the rear diecast .
12. Attach the battery.
13. Attach the On/Off Volume Knob, Channel Knob and Antenna.
