24
English
GETTING STARTED

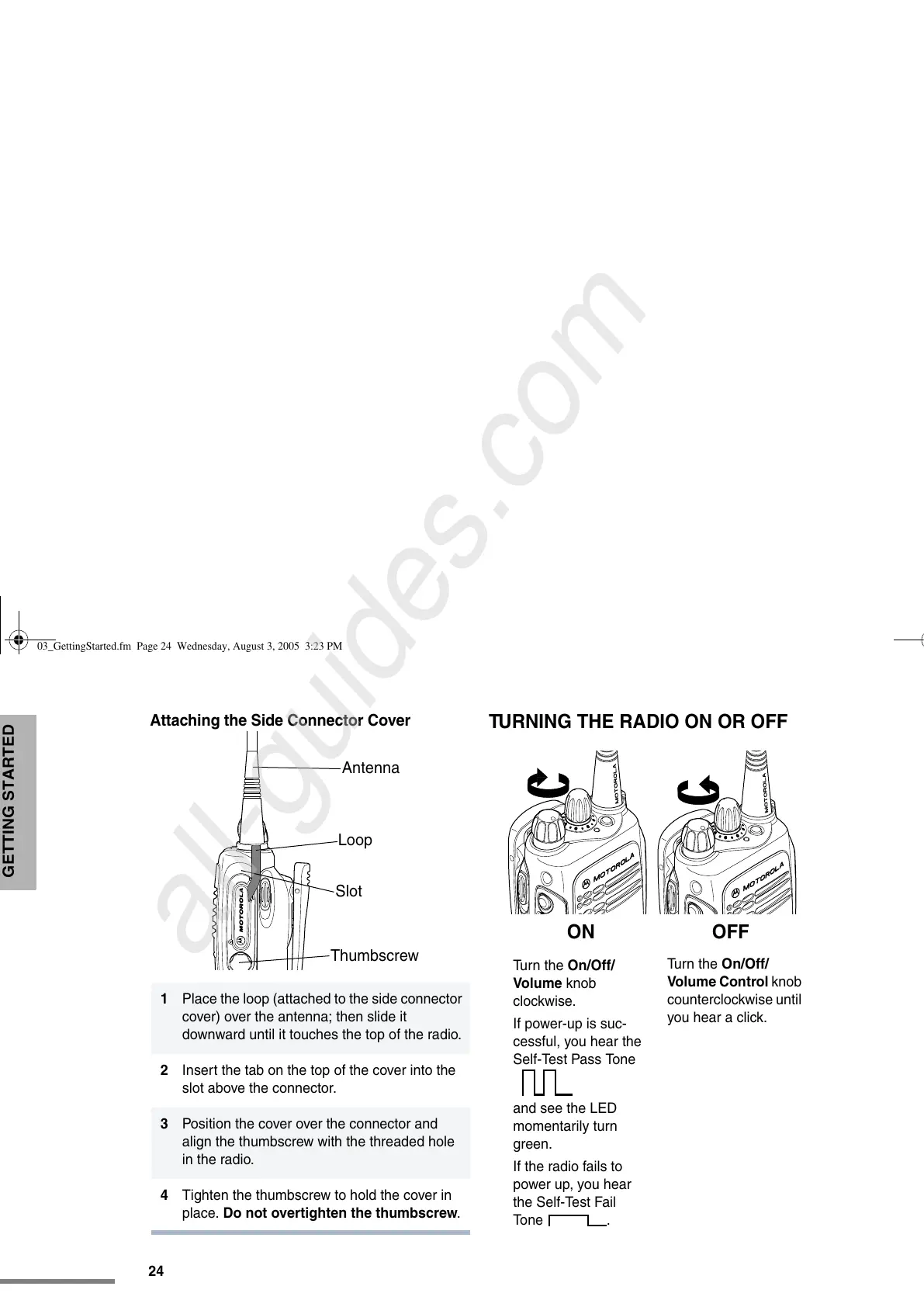

Attaching the Side Connector Cover
TURNING THE RADIO ON OR OFF
1 Place the loop (attached to the side connector
cover) over the antenna; then slide it
downward until it touches the top of the radio.
2 Insert the tab on the top of the cover into the
slot above the connector.
3 Position the cover over the connector and
align the thumbscrew with the threaded hole
in the radio.
4 Tighten the thumbscrew to hold the cover in
place. Do not overtighten the thumbscrew.
Thumbscrew
Slot
Loop
Antenna
ON OFF
Tur n the On/Off/
Volume knob
clockwise.
If power-up is suc-
cessful, you hear the
Self-Test Pass Tone
and see the LED
momentarily turn
green.
If the radio fails to
power up, you hear
the Self-Test Fail
To ne .
Turn the On/Off/
Volume Control knob
counterclockwise until
you hear a click.
