Motorola Radius CM200

2-8 MAINTENANCE

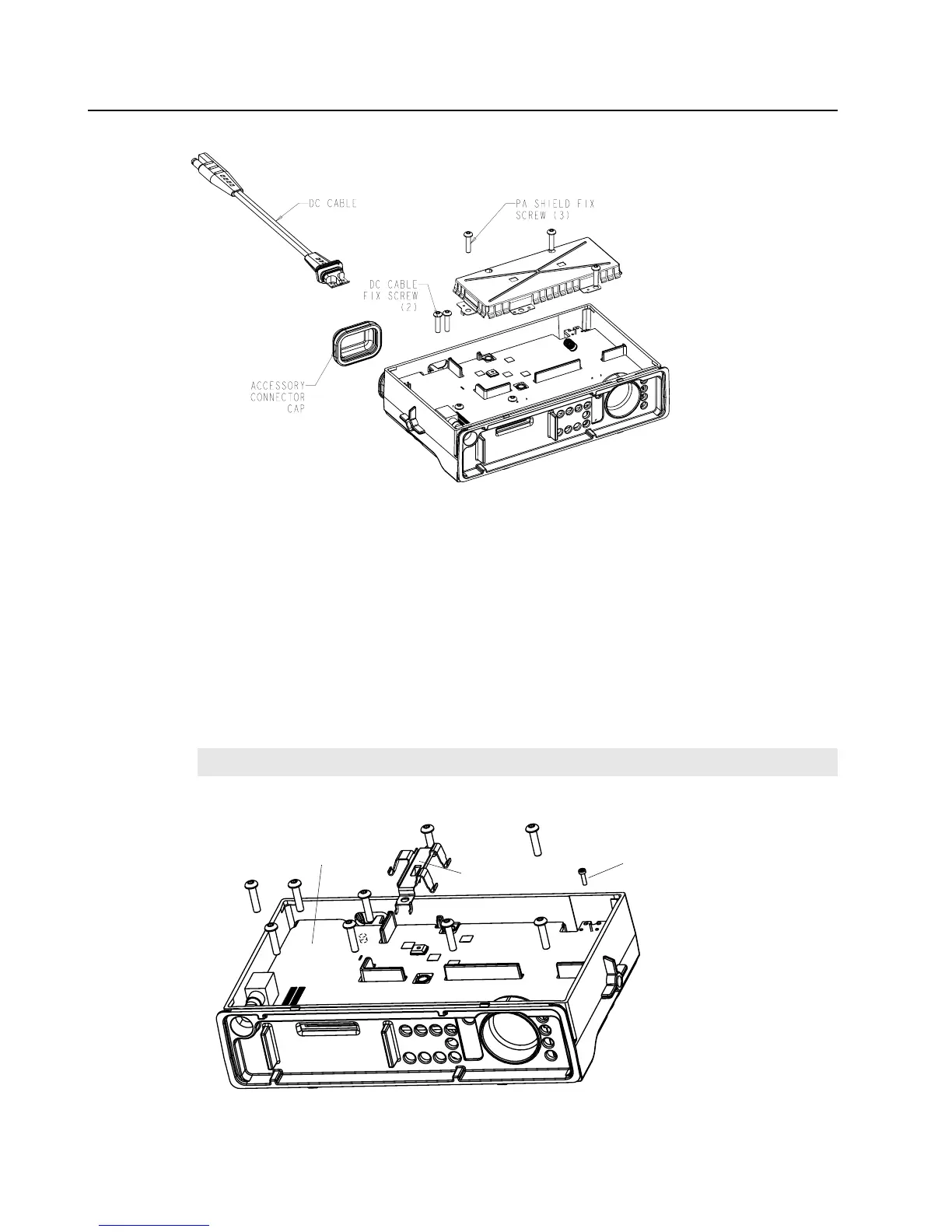

Figure 2-8 PA Shield and DC Cable Removal (for High Power Models)
6.5 PA Clip and Main PCB Removal (for Low Power Models)
1. Remove the screw that attaches the PA clip to the chassis. See Figure 2-9.
2. Remove the PA clip.
3. Remove all the screws that fix the PCB to the chassis.
4. Loosen the M2 screw (about 3 to 4 turns) on the RF connector using hex tool
(Part number: 6680334F39).
5. Loosening this screw, enables you to unscrew the RF connector from outside.
6. Carefully remove the main PCB in a diagonal manner.
Figure 2-9 PA Clip and Main PCB Removal (for Low Power Models)
NOTE
It is recommended to grip the volume potentiometer and remove the PCB board
M2 Screw
PA Clip
Main PCB
