Motorola Radius CM200

4-2 RADIO TUNING AND PROGRAMMING
3.0 CPS Programming/Flashing Setup Ribless

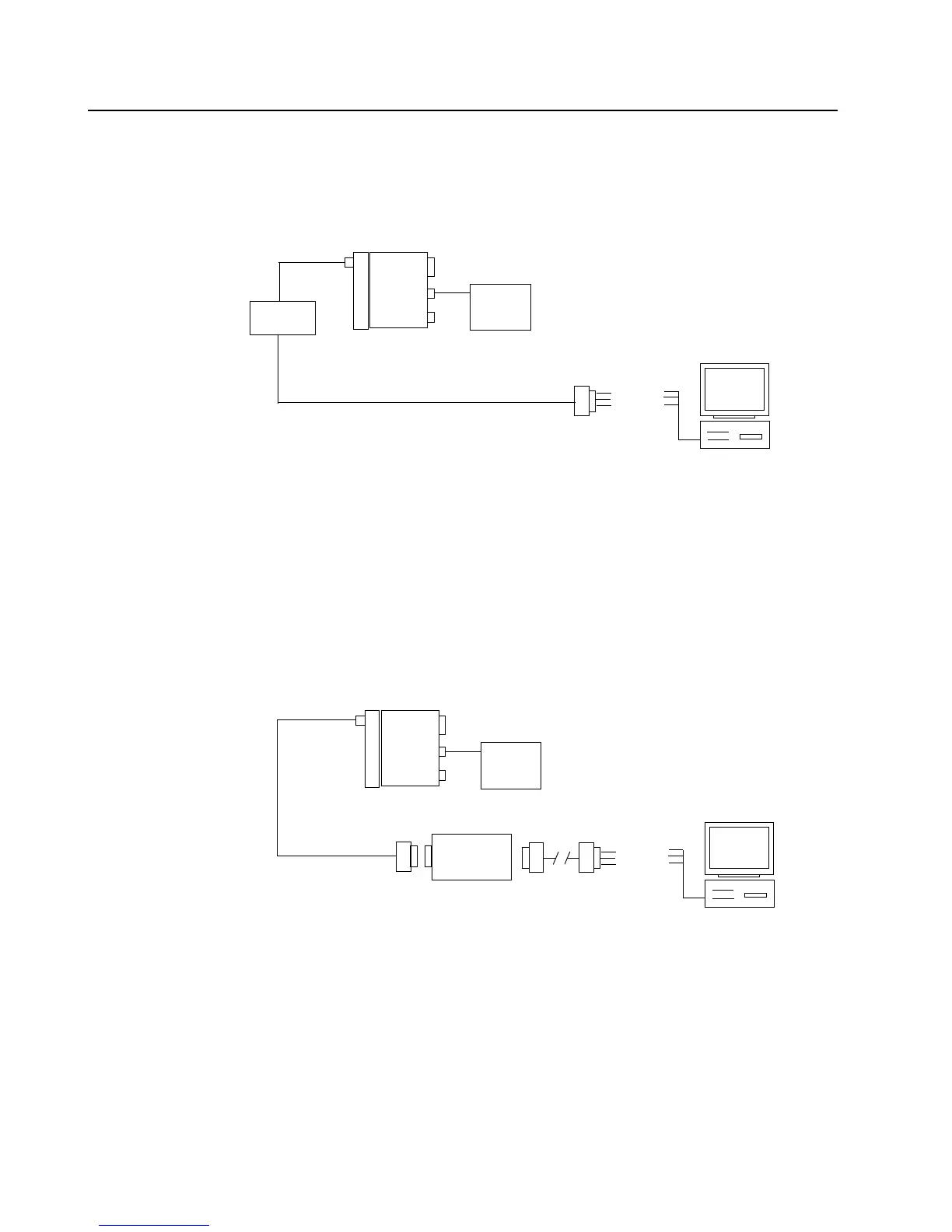

The CPS programming setup, shown in Figure 4-2 is used to program and flash the radio using the
Radio front Telco connector.
Figure 4-2 CPS Programming/Flashing Setup Cable with Internal RIB
4.0 CPS Programming Setup with RIB (with Telco Connector)
The CPS programming setup, shown in Figure 4-3 is used to program the radio using the Radio front
Telco connector.
Figure 4-3 CPS Programming Setup with RIB
Power
Supply
Ribless Programming Cable RKN4081
Rx Data
Gnd
Tx Data
DB25
Radio
DC
RF
ACC
FKN8096
8-pin Telco
10-pin Telco
FKN8096
Data =Programming
Boot = Flashing
RIB
RLN-4008
Rx
Gnd
Data
Tx Data
Cable 3080369B72 (9 PIN)
DB15
Cable 3080369B71 (25 PIN)
Power
Supply
Programming
GTF374
Cable
DB25
Radio
DC
RF
ACC
