Motorola Radius CM200

CPS Programming Setup with RIB (Accessory Connector) 4-3
5.0 CPS Programming Setup with RIB (Accessory Connector)

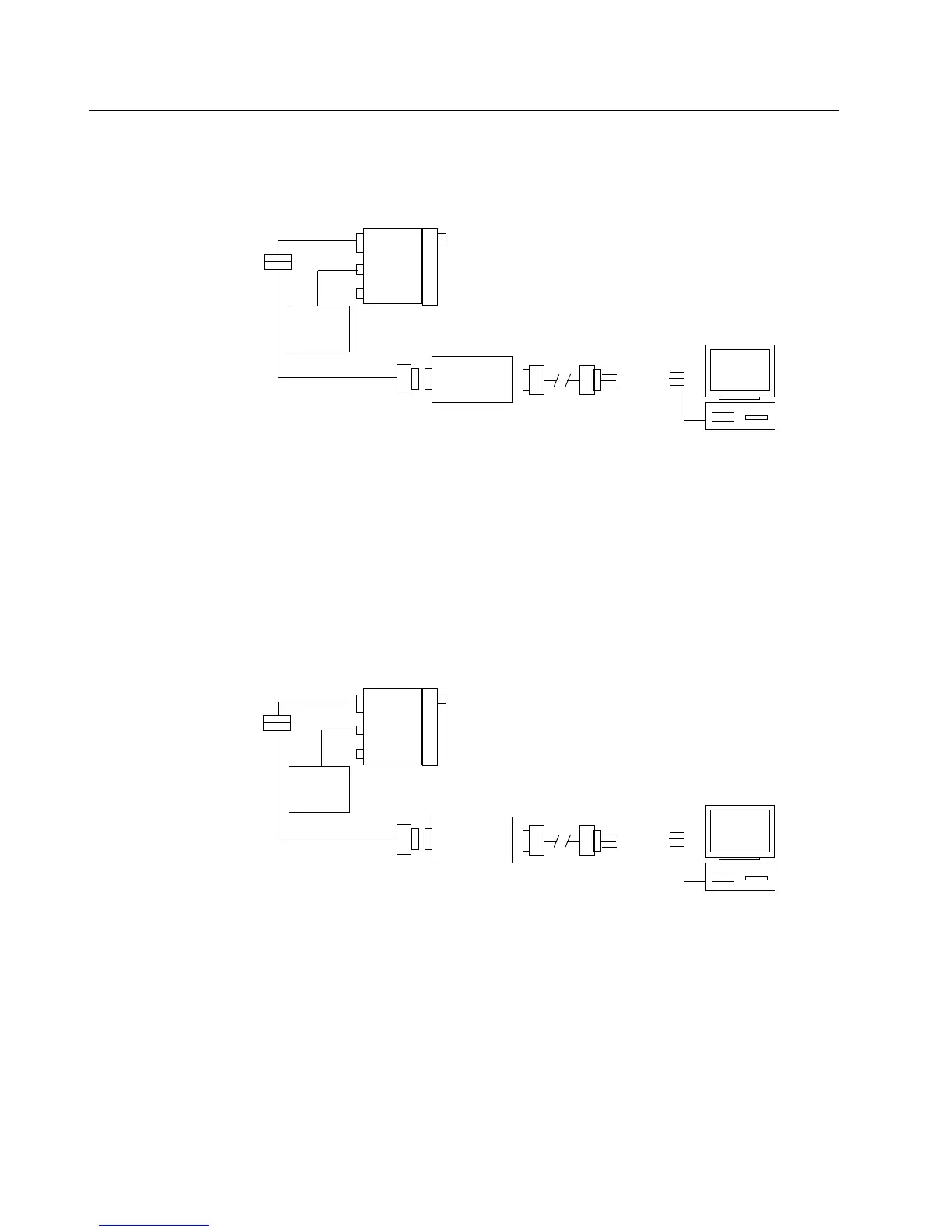

The CPS programming setup, shown in Figure 4-4 is used to program the radio using the Radio rear
accessory connector.
Figure 4-4 CPS Programming Setup Cable with RIB and Rear Adapter Cable
6.0 CPS Programming Setup with RIB
The CPS programming setup, shown in Figure 4-5 is used to program the radio using the Radio rear
accessory connector.
Figure 4-5 CPS Programming Setup Cable with RIB and Rear Adapter Cable
RIB
RLN-4008
Rx
Gnd
Data
Tx Data
Cable 3080369B72 (9 PIN)
DB15
Cable 3080369B71 (25 PIN)
Power
Supply
Programming/Test
RKN4083
Cable
DB25
Radio
DC
RF
ACC
FKN8113
Adapter Cable
RIB
RLN-4008
Rx
Gnd
Data
Tx Data
Cable 3080369B72 (9 PIN)
DB15
Cable 3080369B71 (25 PIN)
Power
Supply
Programming
GTF374
Cable
DB25
Radio
DC
RF
ACC
GTF377
Cable
