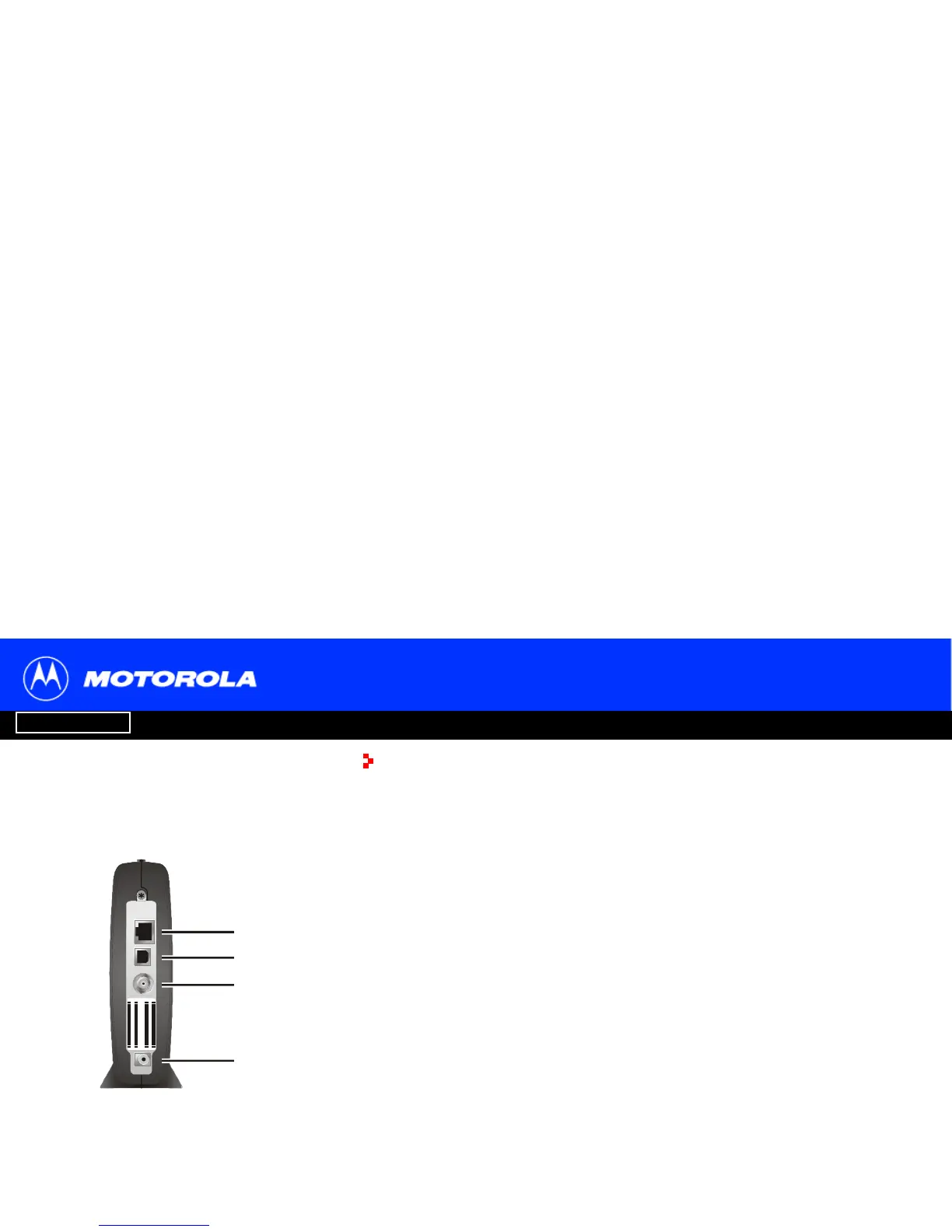

Rear Panel
The rear panel provides cabling connectors and the power receptacle.
Key Item Description
1ETHERNETThe Ethernet port provides a connection to Ethernet equipped computers
using a cable terminated with an RJ-45 connector.
2USB The USB port provides a connection to USB equipped computers.
3 CABLE The CABLE port provides a connection to the coaxial cable (coax) outlet.
4 +12VDC This connector provides power to the cable modem.
ETHERNET
USB
CABLE
+12VDC
USB CPE MAC ID: ABDCEF012345 S/N: PPPPMMYJJJS SSSSCAABBCCCC HFC MAC ID: ABCDEF012 345 CUSTOMER S/N:BCDFGHJKLM NP
1
2
3
4
