Symbol LS4278 Product Reference Guide9-4
Connecting to an IBM 468X/469X Host
See Chapter 4, Radio Communications for information about scanner/cradle pairing and wireless
communication
The scanner must be connected to the cradle for the host parameter setting to take effect. When the scanner
is not connected to a cradle, and a host parameter bar code is scanned, a long low/long high beep sequence
sounds.
This connection is made directly from the cradle to the host interface.

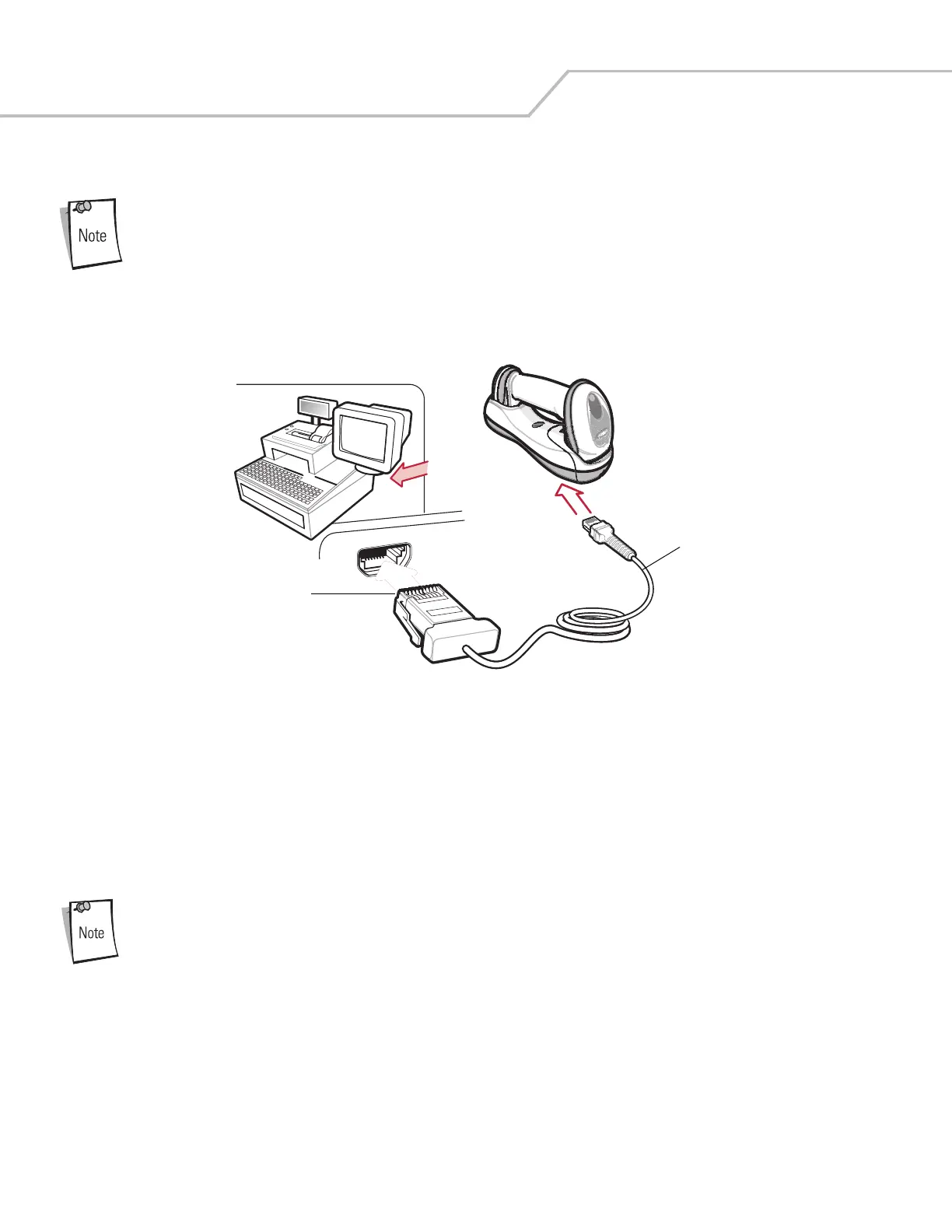

Figure 9-1. IBM Direct Connection
To connect the IBM 46XX interface:
1. Attach the modular connector of the IBM 46XX interface cable to the host port on the bottom of the scanner cradle (see
Connecting the Cradle on page 1-8).
2. Connect the other end of the IBM 46XX interface cable to the appropriate port on the host (typically Port 9).
3. Select the port address by scanning the appropriate bar code from Port Address on page 9-6.
4. To modify any other parameter options, scan the appropriate bar codes in this chapter.
Interface cables vary depending on configuration. The connectors illustrated in Figure 9-1 are examples only.
The connectors may be different than those illustrated, but the steps to connect the cradle remain the same.
If a power supply is used, disconnect the power supply before changing host cables or the cradle may not
recognize the new host.
The only required configuration is the port number. Other scanner parameters are typically controlled by the
IBM system.
Host Port Connector
Interface Cable
To Next Page
