General Operation V300/V500
General Operation
Controls, Indicators, and Input / Output (I/O) Connections
The V300/V500 telephone’s controls are located on the sides of the device and on
the keypad. Indicators, in the form of icons, are displayed on the LCD (see Figure
2). V300/V500 phones have an audible alert transducer on the top and I/O
connectors, consisting of a headset jack and an accessory port, located on the top
and bottom of the phone. See Figure 1.
031935o

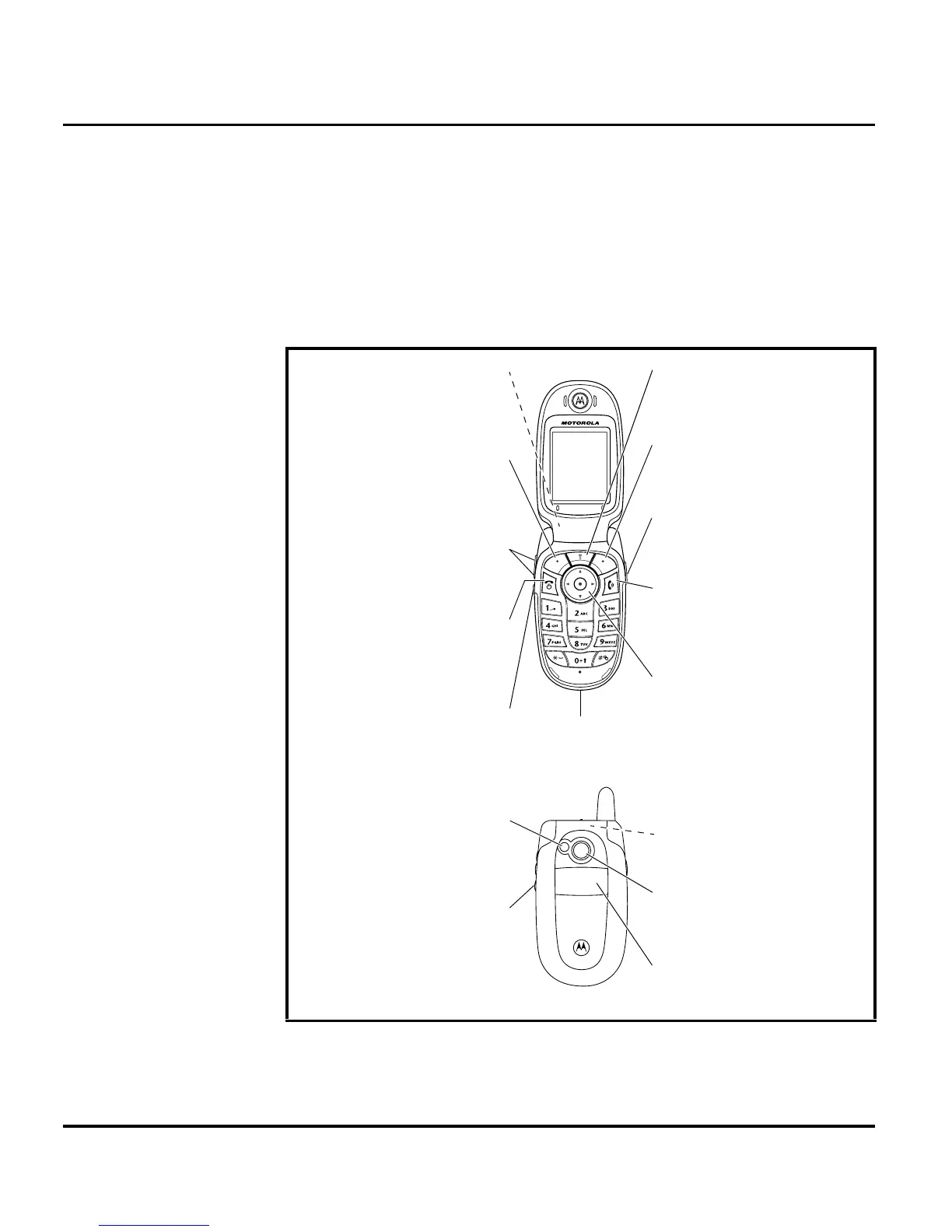

Figure 1. Controls, indicators, and I/O
Headset Jack
Insert headset
accessory for
handsfree use.
Volume Keys
Adjust earpiece &
ringer volume.
Voice Key
Create voice
records, phonebook
& shortcut names.
Accessory
Connector Port
Insert charger &
phone accessories.
Power & End Key
Turn phone on/off,
end calls, exit menu
system.
Right Soft Key
Perform functions
identified by right
display prompt.
Menu Key
Left Soft Key
Perform functions
identified by left
display prompt.
Send Key
Make & answer
calls, view recently
dialed calls list.
5-Way
Navigation Key
Scroll through
menus & lists, set
feature values.
Smart Key
Select menu items,
make & end calls.
Camera Lens
Take photos to send
to others & use on
your phone.
Smart Key
Set ring style & call
forwarding with flip
closed, answer
calls with headset
accessory.
Mirror
Aim camera lens for
self portraits.
External Display
View incoming call
information.
Handsree Speaker
(on back of phone)
