Motostar ECLISTAR - Adjusting the Opening Endstop (Right Hand)

Pag.
15
15 -
Manual code:
119R7179GB
119 R7179 G B ver.
3.0
3.0 07/2009
- The data and information in this manual are subject to change at any time.

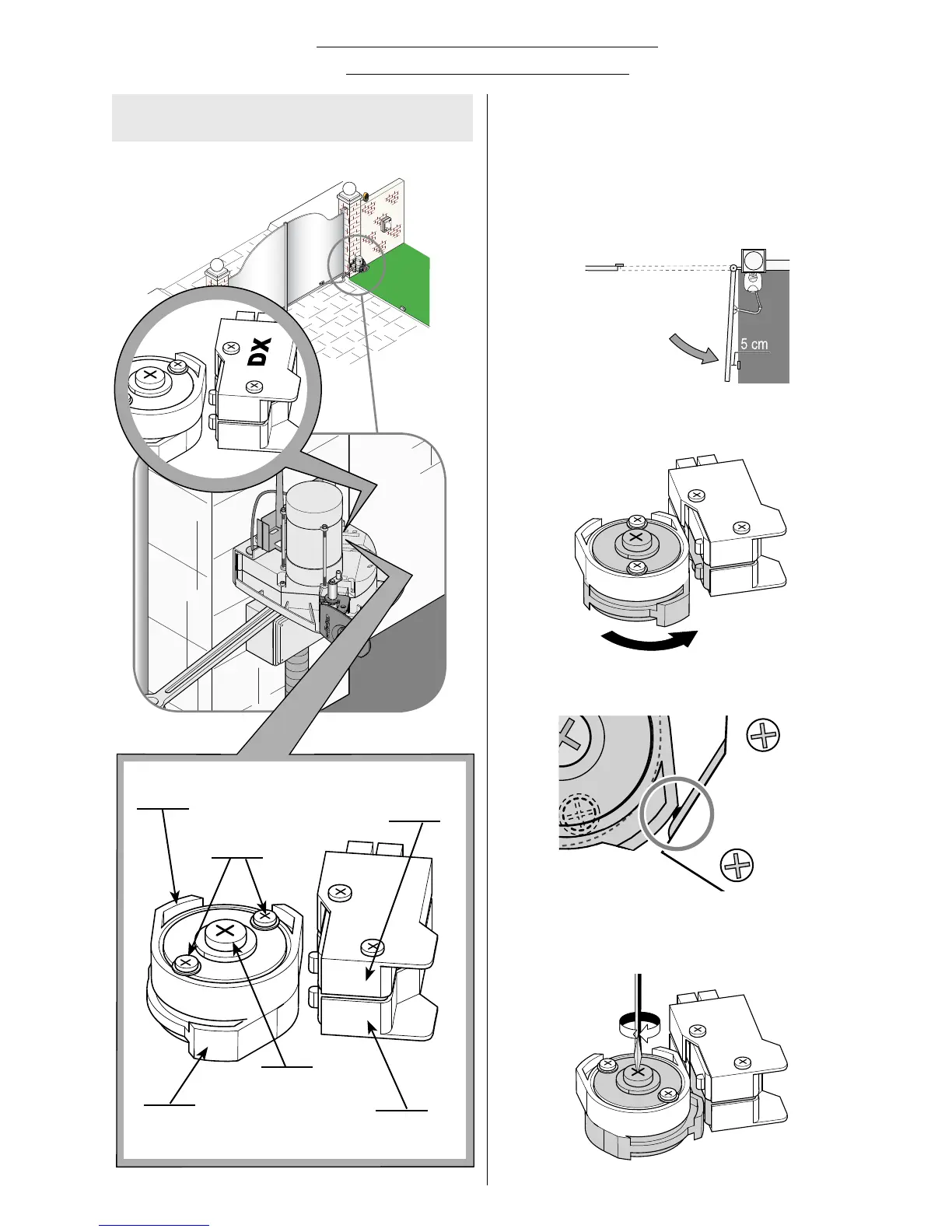

RIGHT HAND GEARMOTOR
- INNER VIEW -
Opening
microswitch
Lower
cam
Closing
microswitch
Upper
cam
Upper cam
securing screw
Lower cam
securing screw
1
- With the motor released, place
the gate leaf at a distance of 5 cm
from the opening endstop.
... until the switch of the micro is
activated.
2
- Rotate the lower cam counter-
clockwise ....
ADJUSTING THE ENDSTOPS
3
- Secure the cam using the central
screw.
ADJUSTING
THE OPENING ENDSTOP
