... until the switch of the micro is
released.
2
- Rotate the upper cam clockwise ....
3
- Secure the cam using the lateral
screws.
1
- Release the gearmotor and
completely close the gate leaf.
N.B. Always adjust the opening endstop
before adjusting the closing one.
Warning: the upper cam of the operator’s
endstop assembly is set up for gate leaf
widths ranging from 1.20 m to 2.20 m.

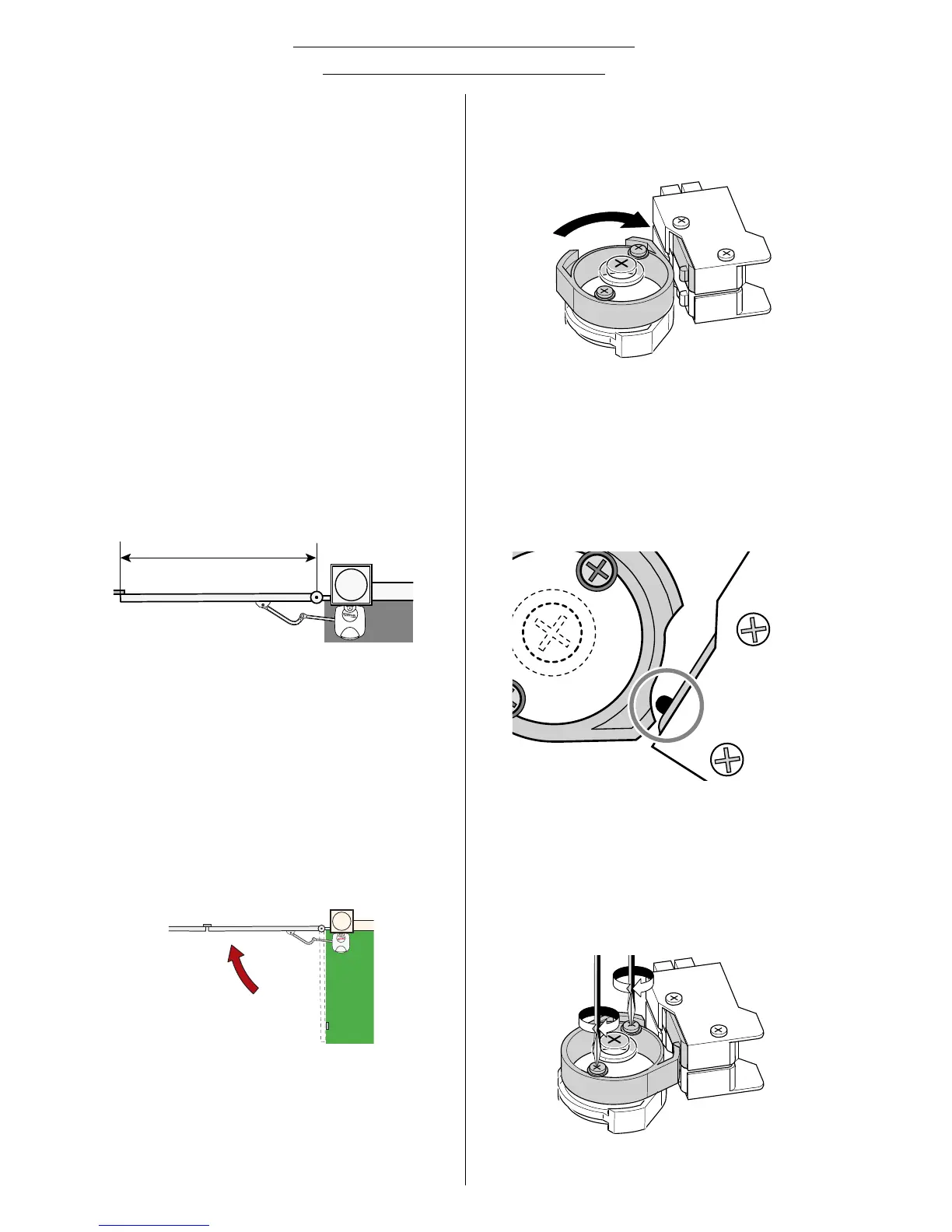

ADJUSTING THE ENDSTOPS
ADJUSTING
THE CLOSING ENDSTOP
