Mountz HDC-35i - Page 73

"1" : Fastening OK
"2" : Fastening NG

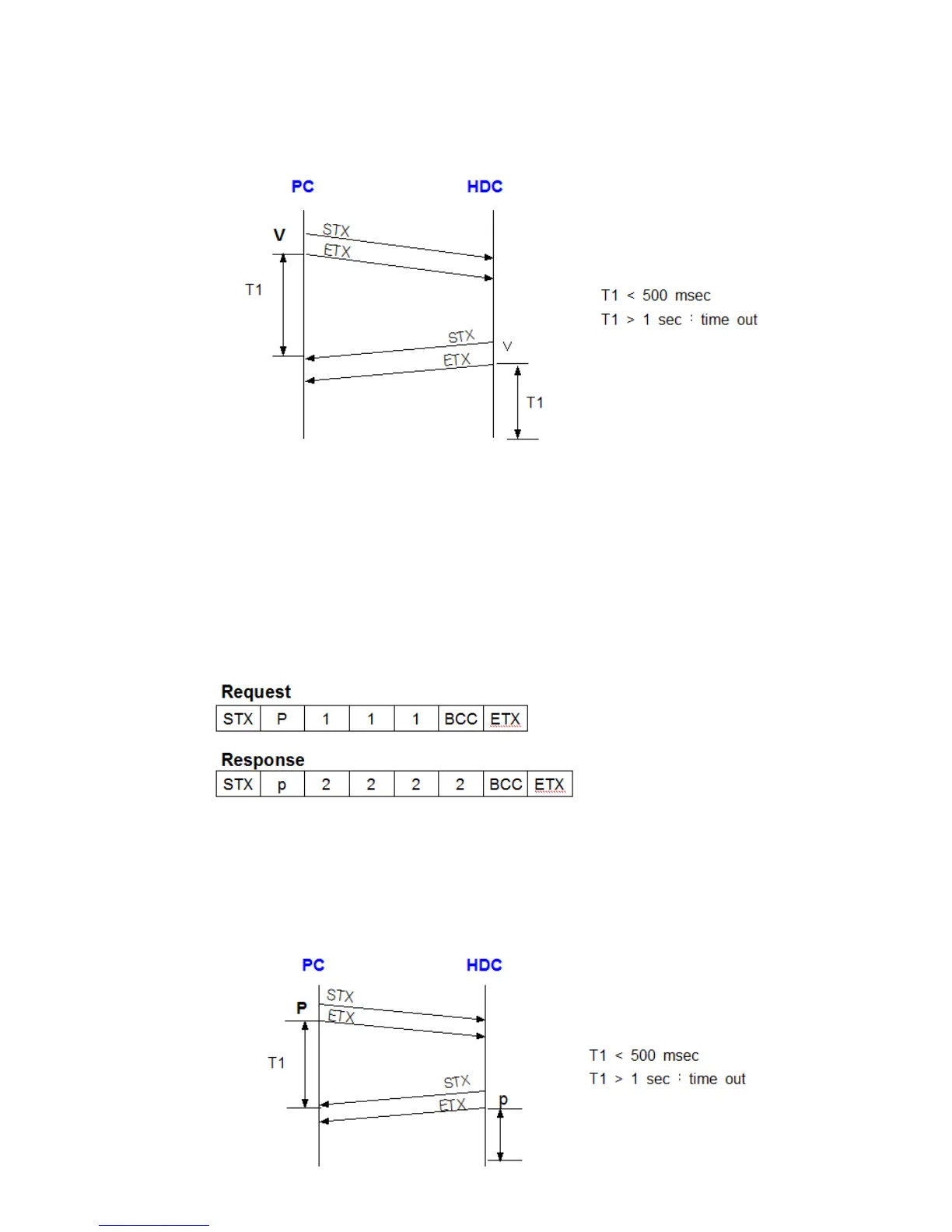

2) Parameter data request and response
1 : Parameter no. / ex) key in "001" which means the parameter no. P1
2 : Torque value of preset #1 in 4 digits ( 0000 - 9999 )
Example) “ 0150” for 1.5 Kgf.cm in SD120 selected
1080 N 11th St San Jose CA 95112
www.mountztorque.com 408.292.2214
73
