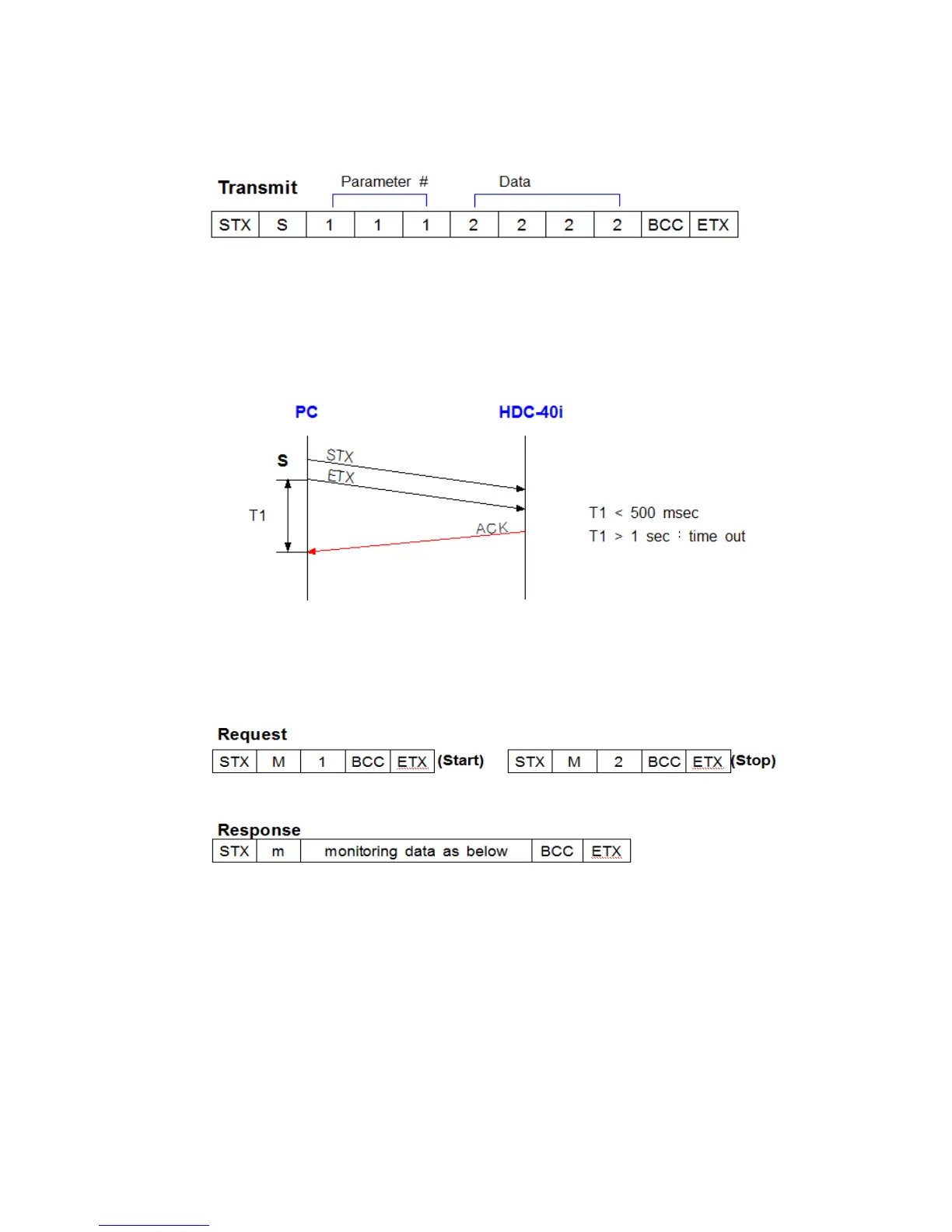

3) Save parameter data
1 : Parameter no. / ex) key in "001" which means the parameter no. P1
2 : Torque value of preset #1 in 4 digits ( 0000 - 9999 )
Example) "0150" for 1.5 Kgf.cm in SD120 selected
4) Request monitoring data
■ monitiring data
Fastening time(99999ms) & Fastening Number(1) & Torque(999)/10 &
RPM(9999) & FastenTurn(999)/10 & Temperature(999)/10 & SystemError(999) &
CounterValue(99) & PickCurrent(999)/10 &
*** & comes between data
